Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement21 · Heating & ventilation
21 · Heating & A/C

Heater controls

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Heater controls
Heating & ventilationHeater controls · page 1 of 4

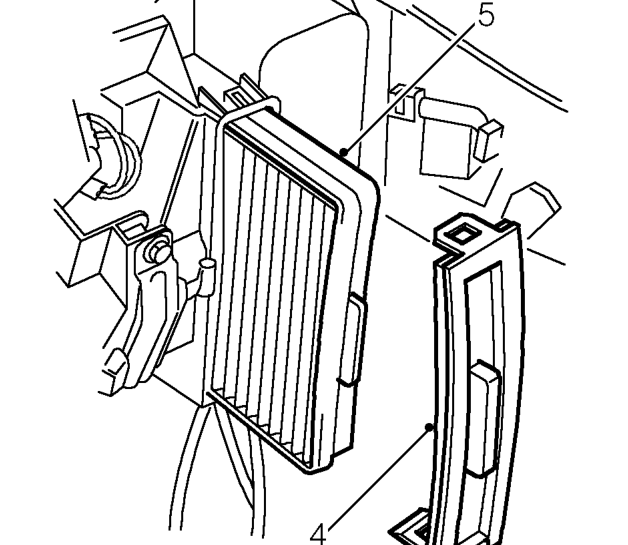

Diagram
  1. Release 2 clips and remove cover from heater housing.
  2. Remove and discard intake air filter.

Refit

  1. Fit new intake air filter to heater housing. Ensure arrow indicating direction of air flow is facing the correct way.
  2. Clean intake air filter cover and fit to heater housing..
  3. Fit glovebox support bar to fascia and secure with screws.
  4. Fit glove box. See BODY, Interior trim components.

HEATER CONTROLS

Service repair no - 80.10.02

Remove

  1. Remove front console. See BODY, Interior trim components.
  2. Remove glove box. See BODY, Interior trim components.

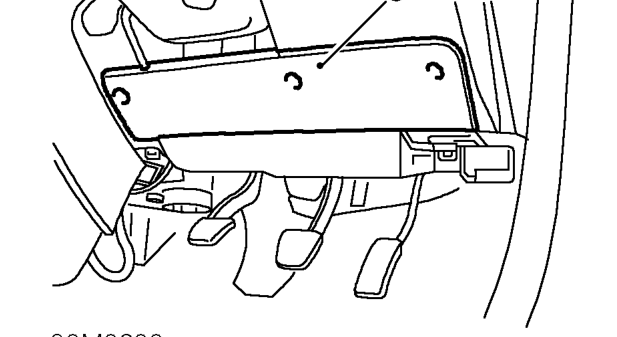

Heater controls – Remove glove box. See BODY, Interior trim components.
  1. Release 3 turnbuckles and remove fuse box cover.

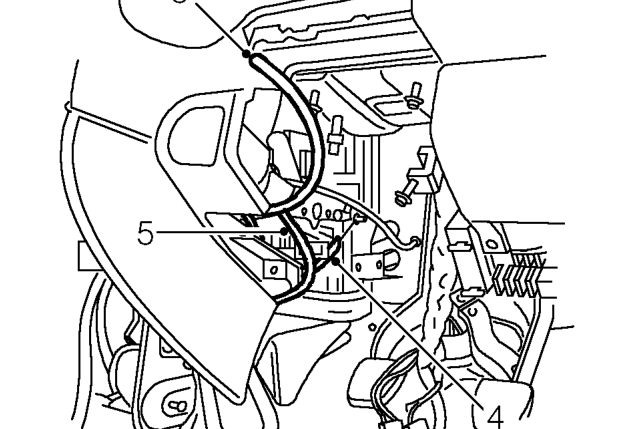

Heater controls – Release 3 turnbuckles and remove fuse box cover.
  1. Disconnect air distribution control cable from heater unit.
  2. Disconnect heater control cable from heater unit.
  3. Disconnect fresh air vent control cable from heater unit.
