Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement21 · Heating & ventilation
21 · Heating & A/C

Heater controls (page 3 of 4)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Heating & ventilationHeater controls · page 3 of 4

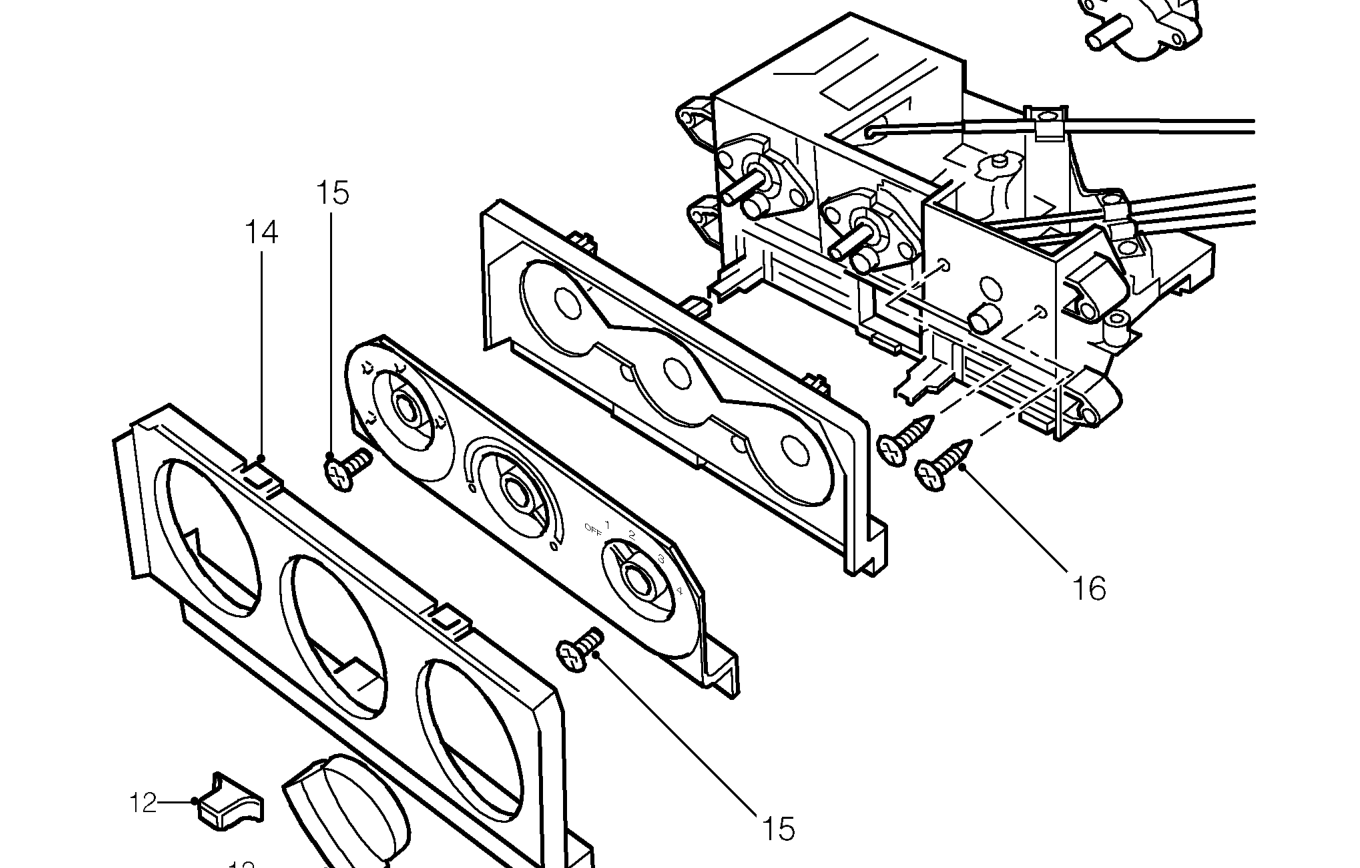

Diagram
  1. Remove heater controls from fascia.

Do not carry out further dismantling if component is removed for access only.

  1. Carefully prize knobs from heater controls.
  2. Release 6 clips securing trim finisher to heater controls.
  3. Remove 2 screws securing bezel to heater controls and remove.
  4. Remove 2 screws securing heater fan switch and remove.

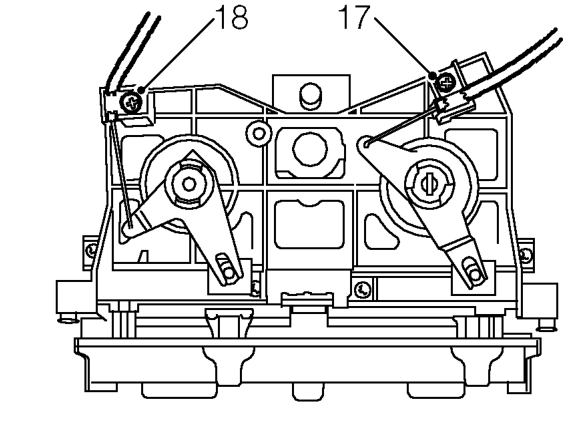

Remove 2 screws securing heater fan switch and remove.
  1. Remove screw securing air recirculation cable and release from heater controls.
  2. Remove screw securing air distribution cable and release from heater controls.
