Heater controls (page 4 of 4)

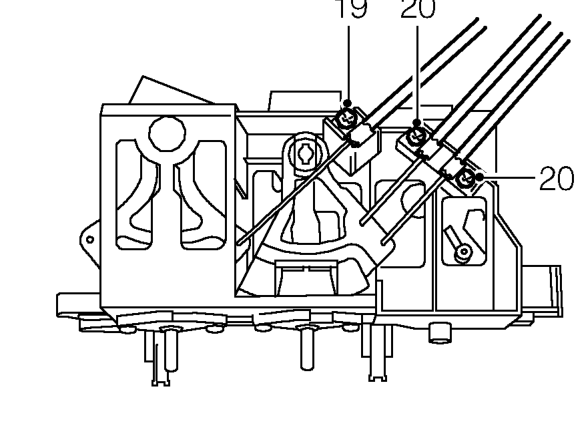

19. Remove screw securing fresh air vent control cable to heater controls and fit to new. Secure with screw.
20. Remove 2 screws securing heater control cables and release from heater controls.
21. Fit heater control cables to heater controls and secure with screws.
22. Fit air distribution cable to heater controls and secure with screw.
23. Fit air recirculation cable to heater controls and secure with screw.
24. Fit fan switch to heater controls and secure with screws.
25. Fit bezel to heater controls and secure with screws.
26. Fit trim finisher to heater controls.
27. Fit knobs to heater controls.

Refit

1. Position heater controls to fascia and connect multiplugs.
2. Fit and tighten screws securing heater controls to fascia.
3. Rotate heater control and control lever on heater assembly to cool positions.
4. Connect heater control cable to lever and secure with clip.
5. Set heater valve to closed position.
6. Feed heater control cable through bulkhead and connect to heater valve. Secure with clip.
7. Set air distribution control and lever on heater assembly to vent positions.
8. Connect air distribution cable to lever and secure with clip.
9. Feed air recirculation cable behind blower assembly and connect to lever. Secure with clip.
10. Fit fresh air vent control cable to heater assembly and secure with clip.
11. Fit fuse box cover and secure with turnbuckles.
12. Fit glovebox. See BODY, Interior trim components.
13. Fit front console. See BODY, Interior trim components.
