Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement21 · Heating & ventilation
21 · Heating & A/C

Heater controls (page 2 of 4)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Heating & ventilationHeater controls · page 2 of 4
Diagram
  1. Disconnect heater control cable from heater valve and release from bulkhead.
Disconnect heater control cable from heater valve and release from bulkhead.

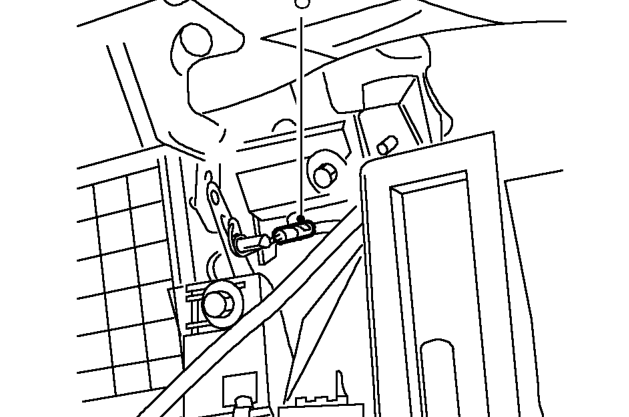

  1. Disconnect air recirculation control cable from blower assembly.
Disconnect air recirculation control cable from blower assembly.

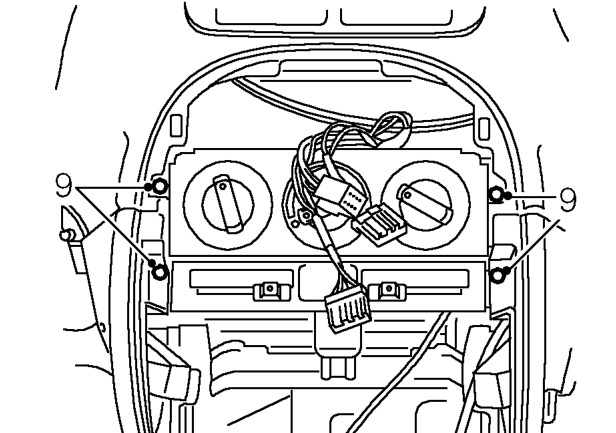

  1. Remove 4 screws securing heater controls and withdraw from fascia.
Remove 4 screws securing heater controls and withdraw from fascia.

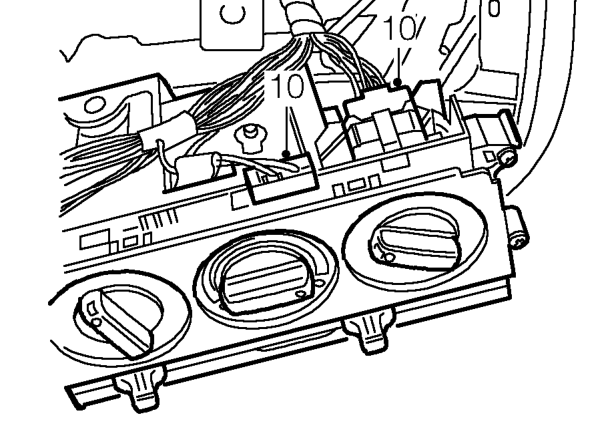

  1. Models with heater: Disconnect 2 multiplugs from heater controls.
  2. Models with air conditioning: Disconnect 3 multiplugs from heater controls.
