RESISTOR UNIT

Service repair no - 80.20.17

Remove

  1. Remove glove box. See BODY, Interior trim components.

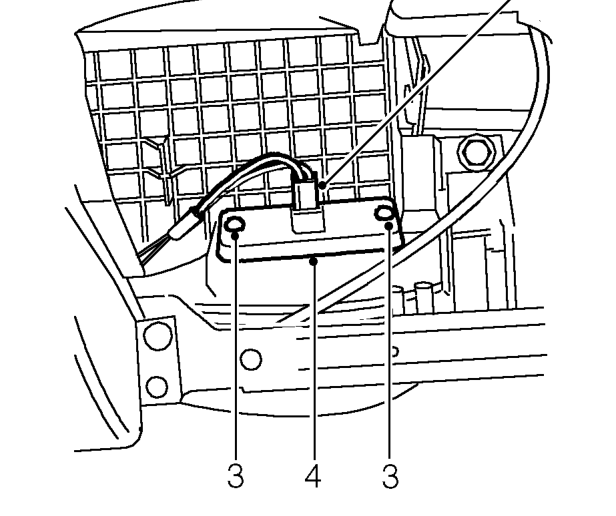

Resistor unit – Remove glove box. See BODY, Interior trim components.
  1. Disconnect multiplug from resistor unit.
  2. Remove 2 screws securing resistor unit to heater.
  3. Remove resistor unit.

Refit

  1. Fit resistor unit to heater and secure with screws.
  2. Connect multiplug to resistor unit.
  3. Fit glove box. See BODY, Interior trim components.

CONTROL CABLE - AIR DISTRIBUTION

Service repair no - 80.10.12

Remove

  1. Remove heater controls. See this section.

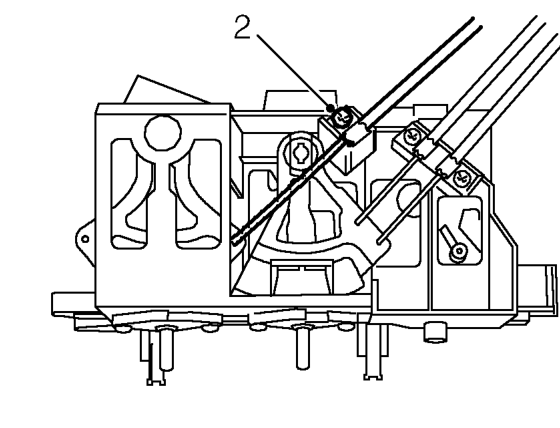

Control cable - air distribution – Remove heater controls. See this section.
  1. Remove screw securing air distribution cable and remove from heater controls.

Refit

  1. Fit air distribution cable to heater controls and secure with screw.
  2. Fit heater controls. See this section.
