HEATER MATRIX

Service repair no - 80.20.29

Remove

  1. Remove heater. See this section.

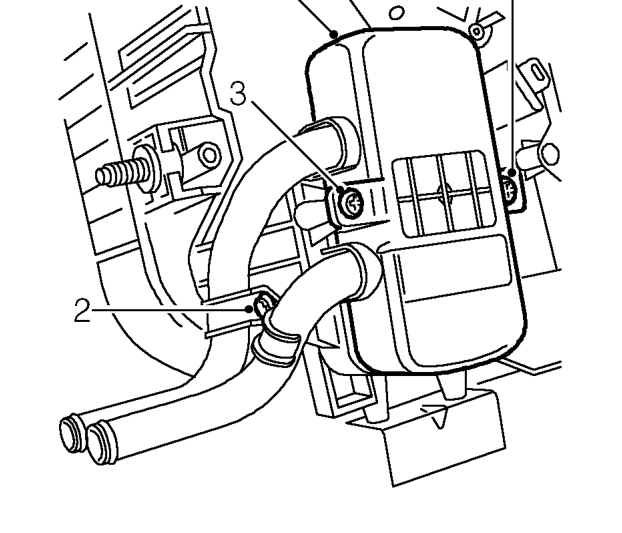

Heater matrix – Remove heater. See this section.
  1. Remove screw securing heater pipe bracket to heater and collect bracket.
  2. Remove 2 screws securing matrix cover to heater.
  3. Withdraw heater matrix from heater.

Refit

  1. Fit matrix to heater.
  2. Position cover to matrix and secure with screws.
  3. Fit bracket to heater pipes and secure with screw.
  4. Fit heater. See this section.

BLOWER ASSEMBLY

Service repair no - 80.20.12

Remove

  1. Disconnect battery earth lead.
  2. Remove fascia. See BODY, Interior trim components.

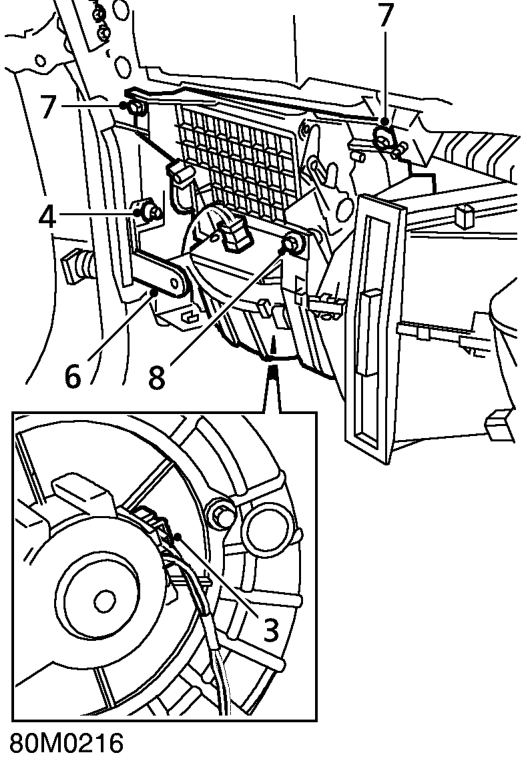

Blower assembly – Remove fascia. See BODY, Interior trim components.
  1. Disconnect 2 multiplugs from blower assembly.
  2. Remove 3 bolts securing fascia end support panel to body.
  3. Remove bolt securing blower assembly to support panel.
  4. Remove support panel.
  5. Remove 2 nuts securing blower assembly to body.
  6. Remove screw securing blower assembly to heater duct.
  7. Release blower assembly from heater duct and remove.
