Leon Mk1

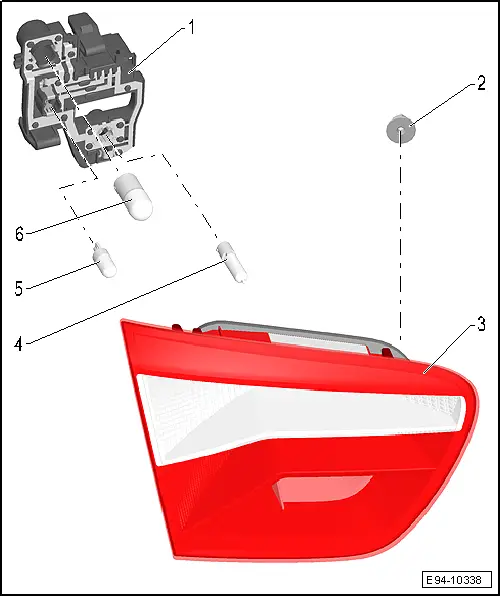

| Tail light of the movable lighting system: assembly overview |
| 1 - | Lamp holder |
| q | Removing and installing → Chapter |
| 2 - | Nut |
| q | Specified torque 3.5 Nm |
| q | Secures tail light to rear lid |
| 3 - | Rear lights on the tailgate |
| q | Removing and installing on the tailgate → Chapter |
| 4 - | Bulb for tail light, rear fog light |
| q | H21 W- 12V |
| q | Renewing bulbs → Chapter |
| 5 - | Bulb for tail light, rear light |
| q | W5 W- 12V |
| q | Renewing bulbs → Chapter |
| 6 - | Bulb for tail light, reverse light |
| q | R10 W- 12V |
| q | Renewing bulbs → Chapter |
