Engine Mount Replacement

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions - On Vehicle › Engine Mount Replacement

EngineEngine Mount Replacement

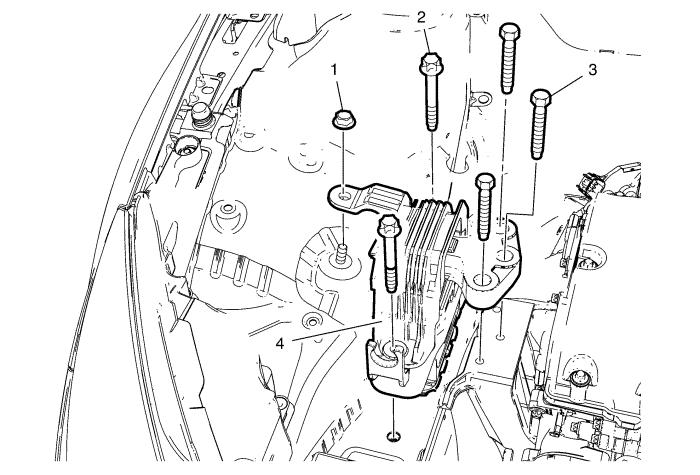

Engine Mount Replacement Callout Component Name Preliminary Procedures 1. Open the hood. 2. Remove the air cleaner assembly. Refer to . Air Cleaner Replacement 3. Install engine lifter to the engine lift brackets. 1 Engine Mount Nut Caution: Refer to Fastener Caution . Tighten 62 N·m (46 lb ft) 2 Engine Mount Bolt (Qty: 2) Tighten 62 N·m (46 lb ft) 3 Engine Mount Bolt to Engine Mount Bracket (Qty: 3) Tighten 60 N·m (44 lb ft) 4 Engine Mount
