Exhaust Camshaft Replacement

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions - On Vehicle › Exhaust Camshaft Replacement

EngineExhaust Camshaft Replacement

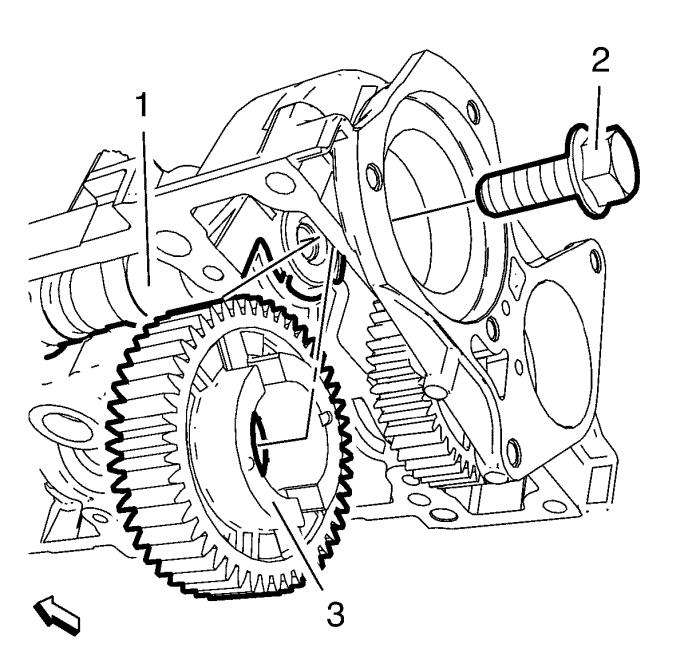

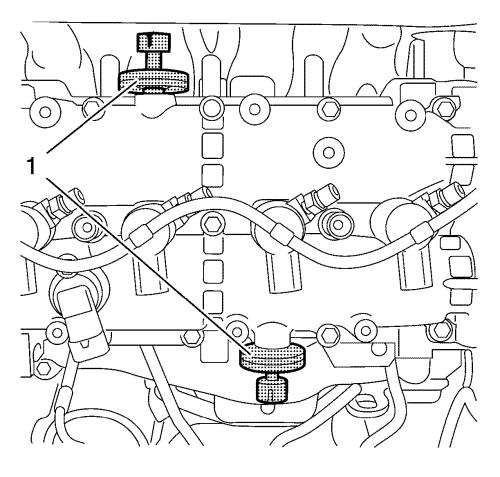

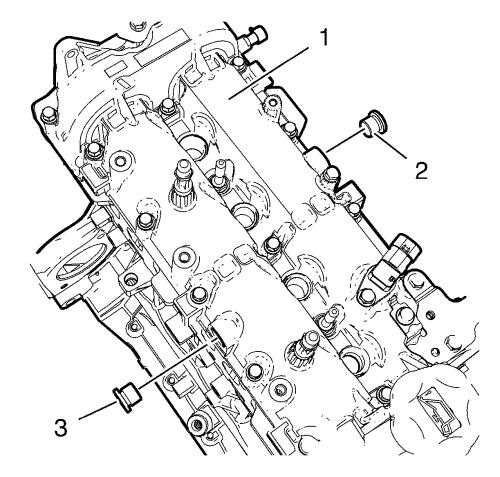

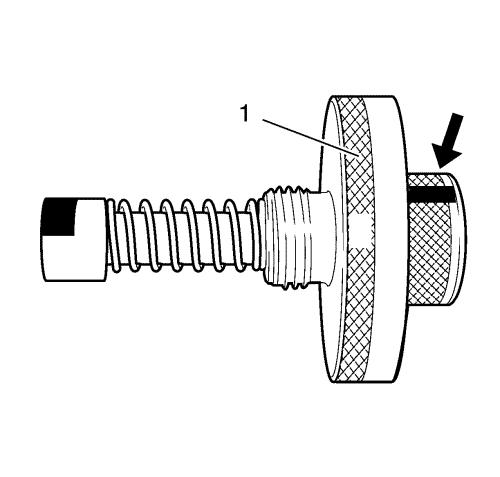

Exhaust Camshaft Replacement Special Tools EN-46781   Fixing Tool For equivalent regional tools, refer to Special Tools . Removal Procedure 1. Remove the camshaft housing cover gasket. Refer to Camshaft Housing Cover Gasket Replacement . 2. Remove the fuel injection pump. Refer to Fuel Injection Pump Removal . 3. Remove the camshaft position sensor. Refer to Camshaft Position Sensor Removal .            4. Remove the exhaust cylinder head core hole plug (2) from camshaft housing (1). 5. Remove the intake cylinder head core hole plug (3) from camshaft housing (1). 6. Clean the threads from cylinder head core hole plugs and camshaft housing.            7. Mark (arrow) at the EN-46781   fixing tool (1).            Note:  EN-46781   fixing tool (1) must be installed in horizontal position. 8. Install the EN-46781   fixing tool (1) onto the exhaust side and intake side.            9. Remove the exhaust camshaft sprocket bolt (2). 10. Remove the exhaust camshaft sprocket (3). 11. Remove the EN-46781   fixing tool from the exhaust side 12. Remove the exhaust camshaft (1). Installation Procedure            Note:  Clean the contact surfaces from camshaft, camshaft sprocket and camshaft sprocket bolt. Coat the camshaft bearing surfaces with engine oil. 1. Install the exhaust camshaft (1). 2. Install the EN-46781   fixing tool on the exhaust side 3. Install the exhaust camshaft sprocket (3). Caution: Refer to Fastener Caution . 4. Install the exhaust camshaft sprocket bolt (2) and tighten to 150 N·m (111 lb ft) . 5. Remove the EN-46781   fixing tool from the exhaust side.            6. Install the exhaust cylinder head core hole plug (2) to the camshaft housing (1). 7. Install the camshaft position sensor. Refer to Camshaft Position Sensor Installation . 8. Install the fuel injection pump. Refer to Fuel Injection Pump Installation . 9. Install the camshaft housing cover gasket. Refer to Camshaft Housing Cover Gasket Replacement .
