Checking Alignments

Checking Alignments

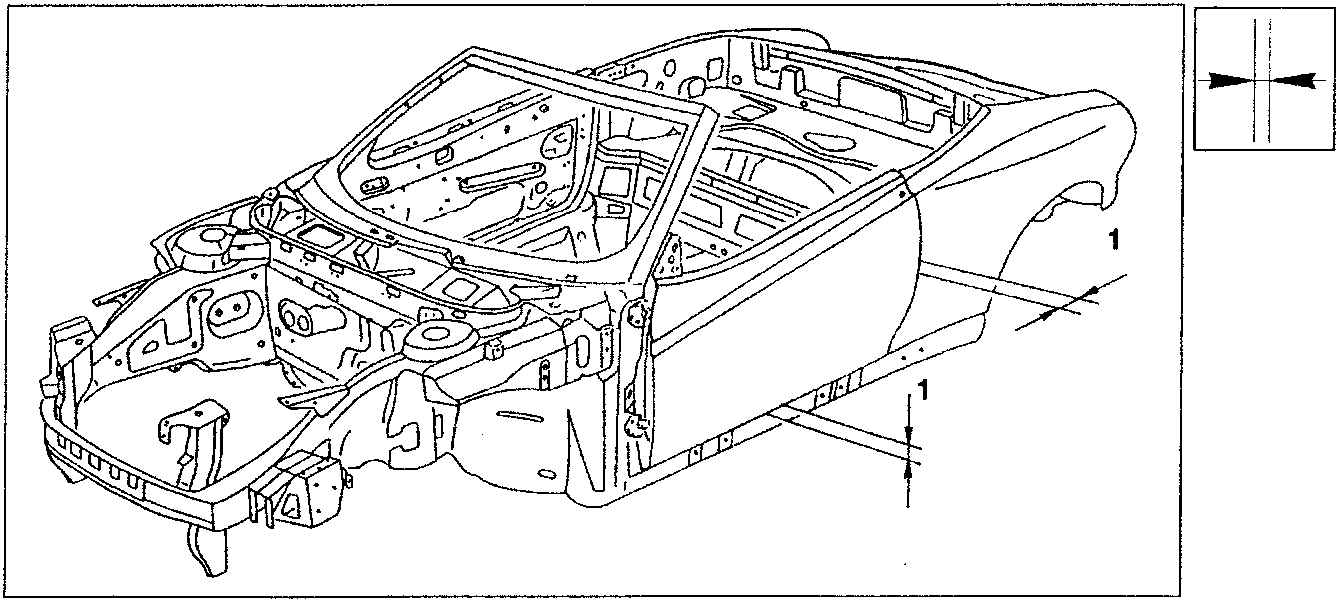

1. Check parallelism, gaps and angles (this involves assembly of the mobile components removed previously with seals and the parts which once assembled make it possible to check that the operations are perfectly successful).

– Assemble the bracket fastening the bracket to the pillar (see: "Replacing the Bracket fastening the Bracket to the Pillar").

Protections

• Apply rust proofing in the areas involved by MIG welding.
• Seal the joints and carry out the rust-proofing and foaming treatments, apply the sound-deadening panels referring to the general tables given in the Manual for the areas to be treated and the products to be used.
• Proceed with painting operations.
