Preparing the spare - inner side panel

PREPARING THE SPARE - INNER SIDE PANEL

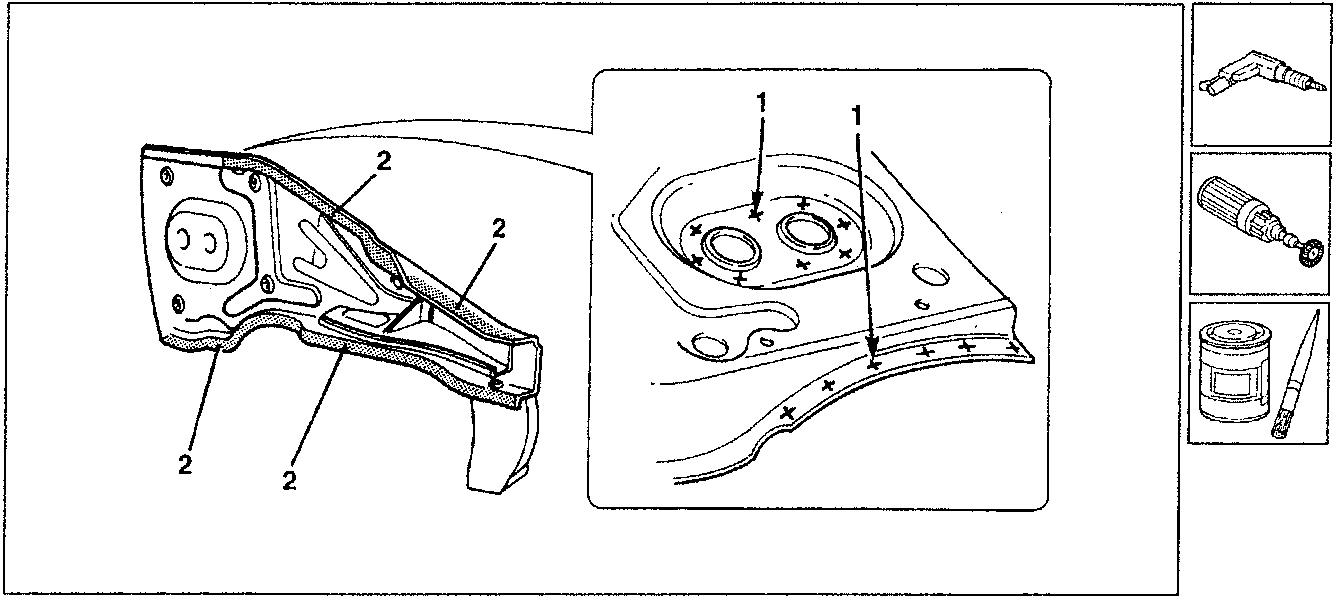

1. Trace the inner panel and drill using a drill with Ø 5 mm. bit, as illustrated. the perimeter of the inner panel and the areas involved by welding, using a rotary brush.
2. Apply electro-galvanizing paint on the areas involved by spot welding.

1. 2
2. 2
3. 2
4. 2

POSITIONING THE SPARE - INNER PANEL

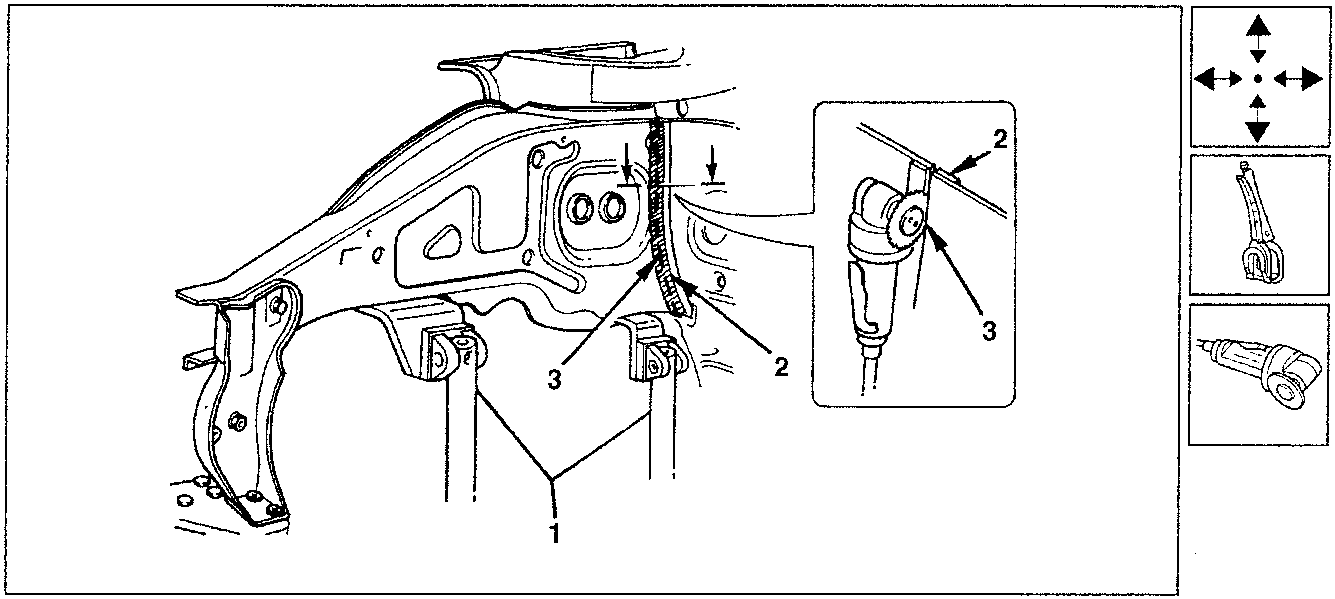

1. Position the inner side panel correctly using the template.
2. Overlay and clamp the components to be welded mating the edges and check alignment.
3. Trim the sheets eliminating the excess, using a circular saw.

1. 1
2. 2
3. 3
