70 BodyworkPositioning the spare - rear sidemember

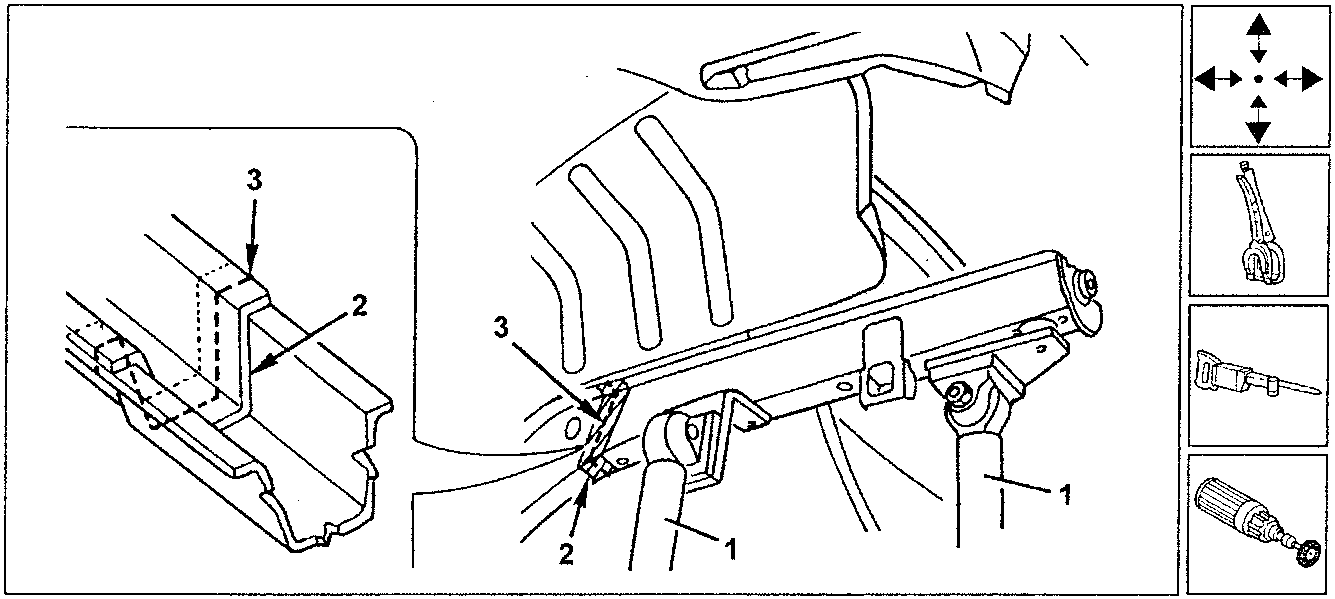

POSITIONING THE SPARE - REAR SIDEMEMBER

  1. Position the sidemember correctly using the template.
  2. Overlay and clamp the components to be welded mating the edges and check alignment.
  3. Trim the sheets eliminating the excess, using a pneumatic saw; take care not to damage the parts above.
    • Clean the areas involved by welding using a rotary brush.
Diagram showing positioning of rear sidemember with parts 1, 2, and 3, and tools including alignment guide, pneumatic saw, and rotary brush.

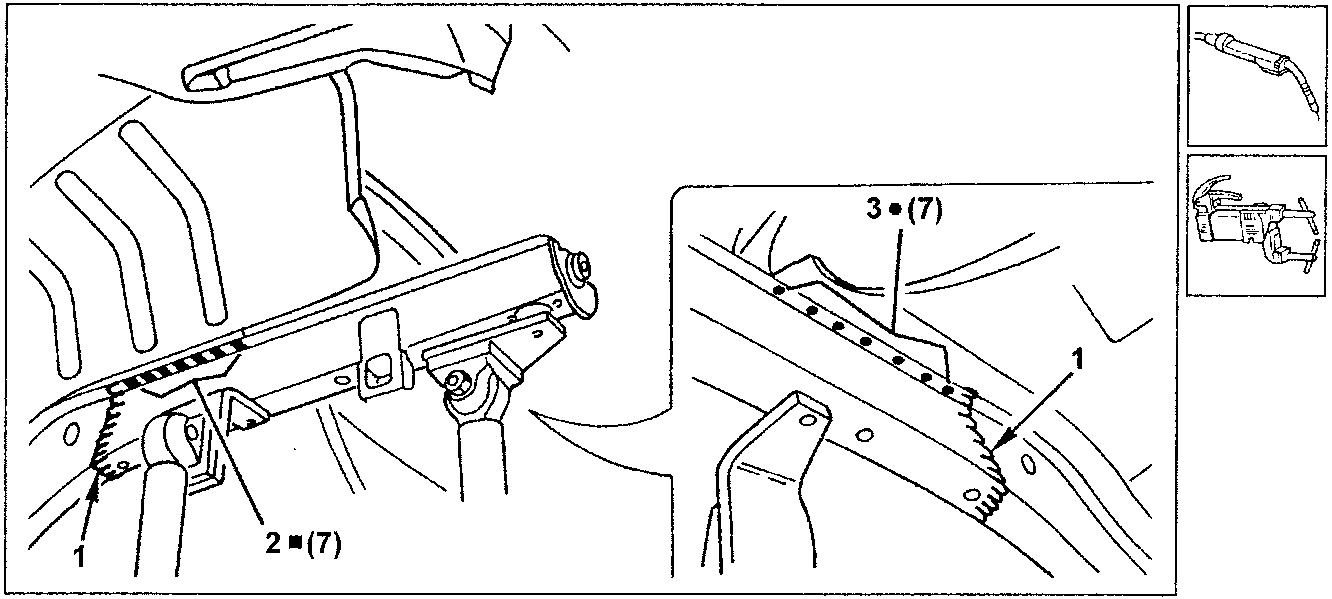

WELDING THE SPARE - REAR SIDEMEMBER

  1. Seam weld using a MIG welder.
  2. Fill weld using a MIG welder.
  3. Spot weld as illustrated.
Diagram showing welding techniques: seam weld (part 1), fill weld (part 2), and spot weld (part 3) on the rear sidemember.
