70 BodyworkPreparing the spare - roof

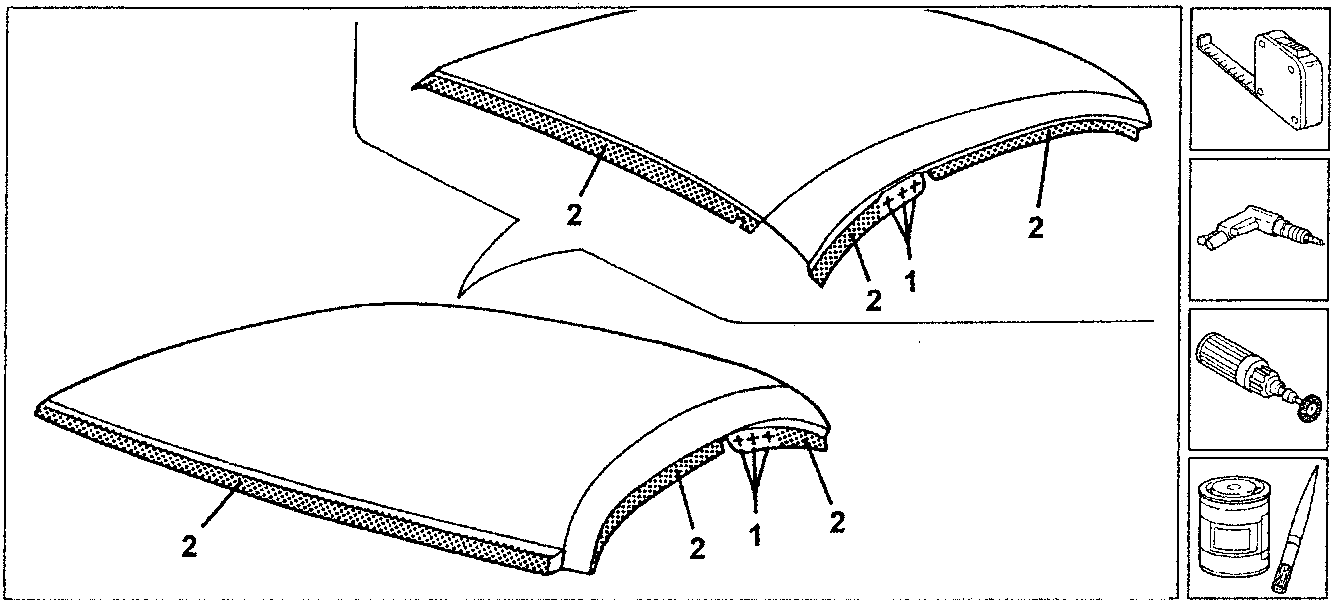

PREPARING THE SPARE - ROOF

1. Working on the bench trace the roof and drill as illustrated using a ø 5 mm bit.
   • Clean the areas of the roof involved by welding using a rotary brush.
2. Apply electro-galvanizing paint on the areas involved by spot welding.

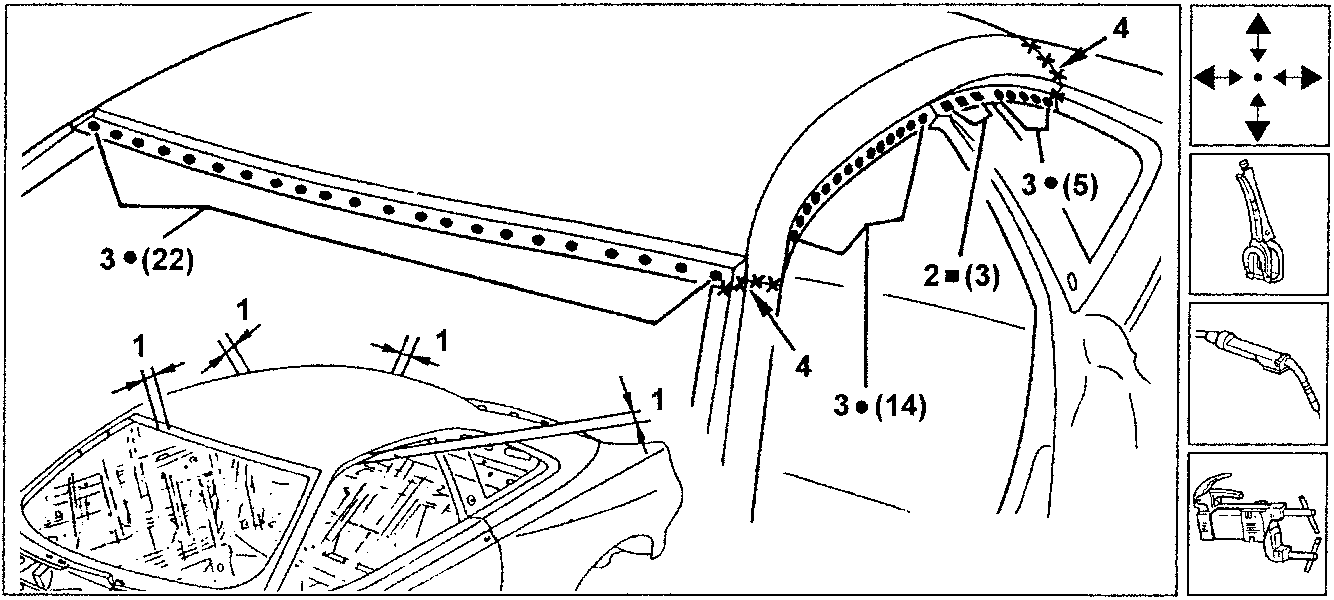

POSITIONING AND WELDING THE SPARE - ROOF

• Position the roof correctly.

1. Clamp the components to be welded mating the edges and check alignment.
2. Fill weld using a MIG welder.
3. Spot weld, as illustrated.
4. Braze weld in the areas illustrated.
