70 BodyworkFinishing operations

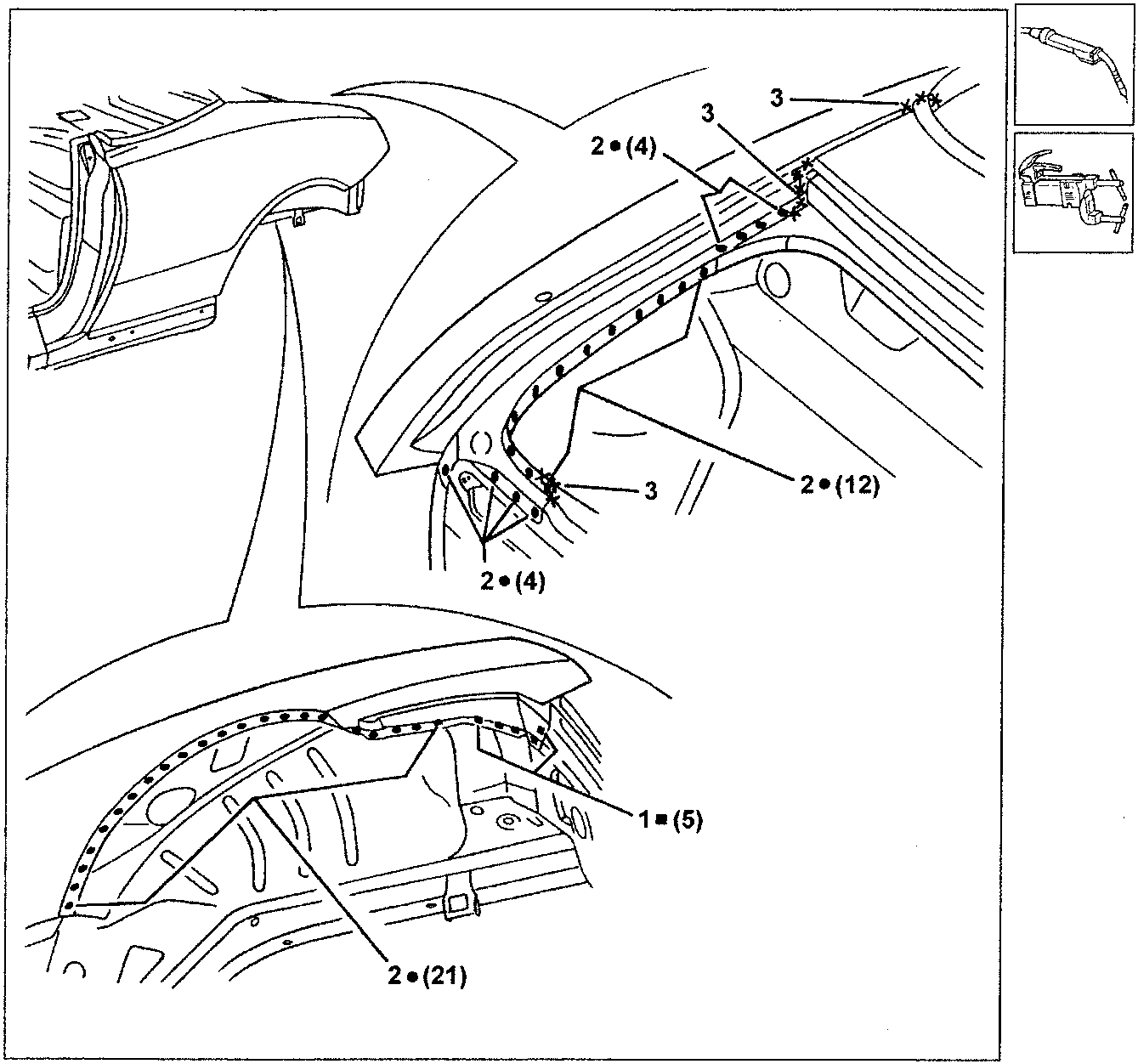

  1. Fill weld using a MIG welder.
  2. Spot weld, as illustrated.
  3. Braze weld in the areas illustrated.
Diagram showing welding points on car bodywork with callouts 1=(5), 2•(4), 2•(12), 2•(21), and 3.

FINISHING OPERATIONS

  • Remove and level remains of welding, using a sander.
  • Clean the welded areas, using a rotary brush.

PROTECTIONS

  • Apply rust proofing in the areas involved by MIG welding.
  • Seal the joints and carry out the rust-proofing treatments, referring to the general tables given in the Manual for the areas to be treated and the products to be used.
  • Proceed with painting operations.
