WELDING THE SPARE - INNER SIDE PANEL

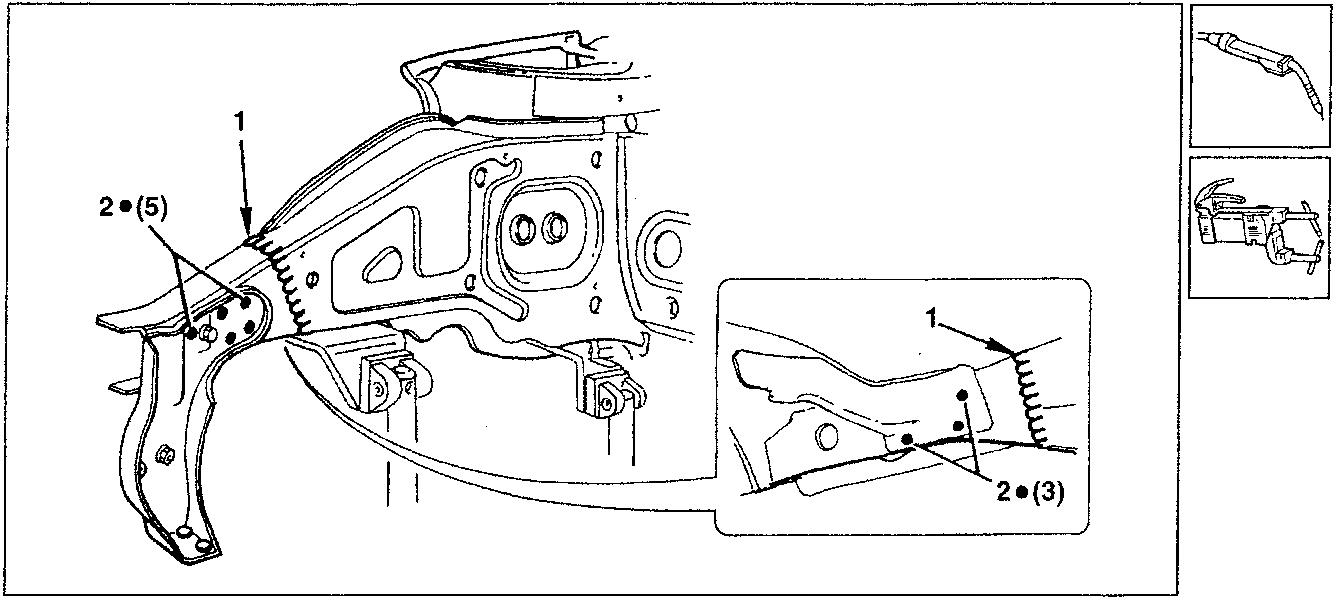

  1. Weld using a MIG welder.
  2. Spot weld as illustrated (not present on left-hand inner side panel).
Diagram showing welding points on inner side panel with MIG welder and spot welds marked

PREPARATION OF THE SPARE - OUTER SIDE PANEL

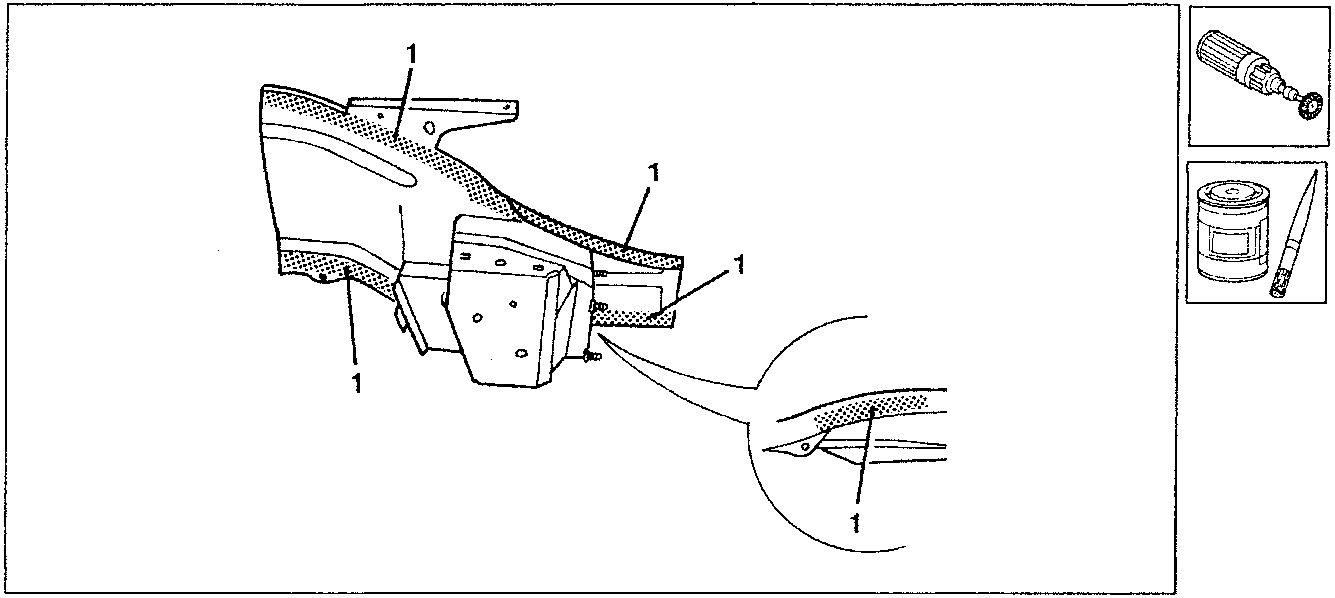

  • Clean the perimeter of the outer side panel and the areas involved by welding using a rotary brush.
  1. Apply rust proofing in the areas involved by spot-welding.
Diagram showing outer side panel with rust proofing applied to welded areas
