POSITIONING THE SPARE - INNER SIDE PANEL

  1. Position the inner side panel correctly using the template and checking dimension A illustrated.
  2. Overlay and clamp the components to be welded mating the edges and check alignment.
  3. Trim the sheets eliminating the excess, using a circular saw; take care not to damage the reinforcement below.

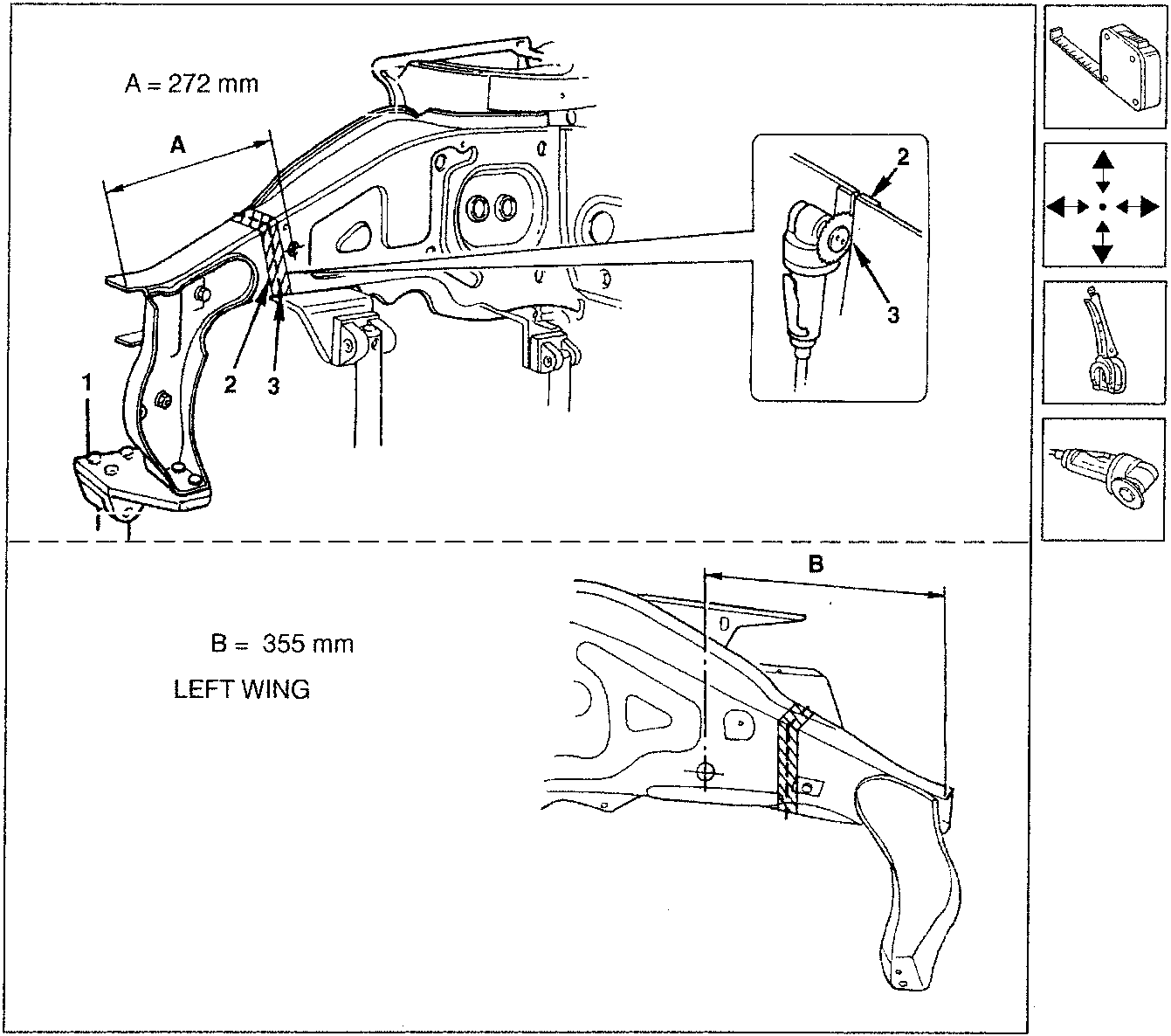

Diagram showing positioning of inner side panel with dimension A = 272 mm, and details for left wing with dimension B = 355 mm. Includes inset illustrations of tools: a clamp (labeled 2 and 3), alignment arrows, a lever, and a circular saw.
  1. 1
  2. 2
  3. 3

B = 355 mm

LEFT WING
