70 BodyworkPositioning the spare - rear panel

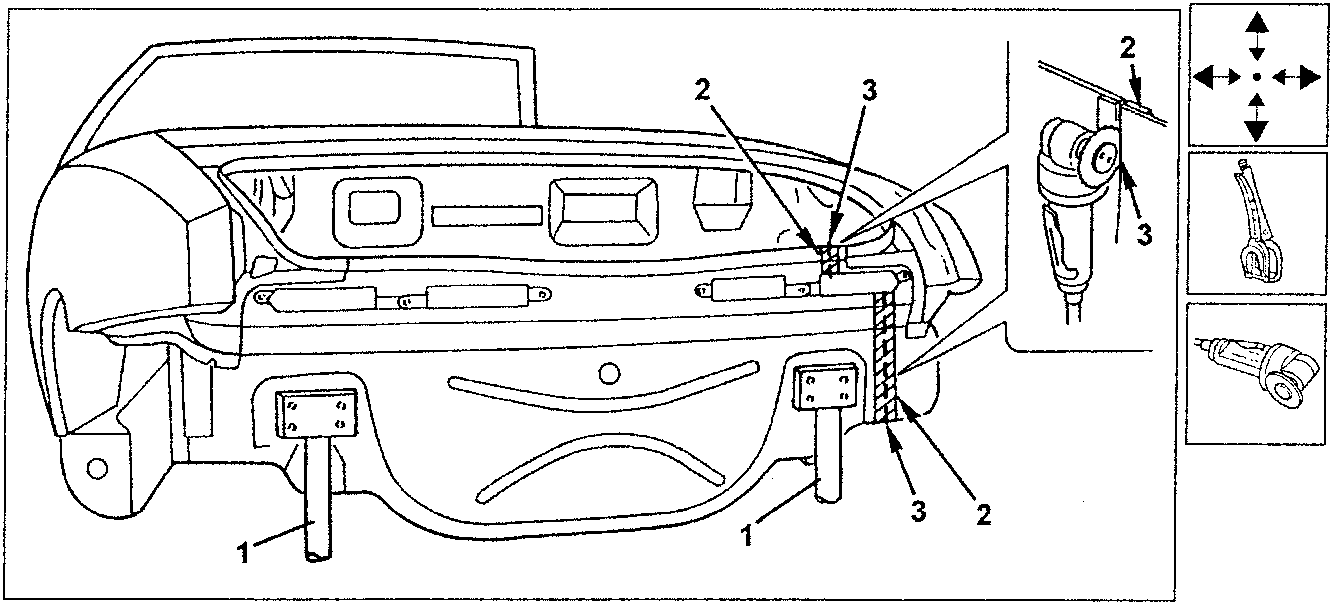

POSITIONING THE SPARE - REAR PANEL

  1. Position the rear panel correctly using the template.
  2. Overlay and clamp the components to be welded mating the edges and check alignment.
  3. Trim the sheets eliminating the excess, using a circular saw; take care not to damage the crossmember below.
Diagram showing rear panel positioning with welding tools and alignment indicators

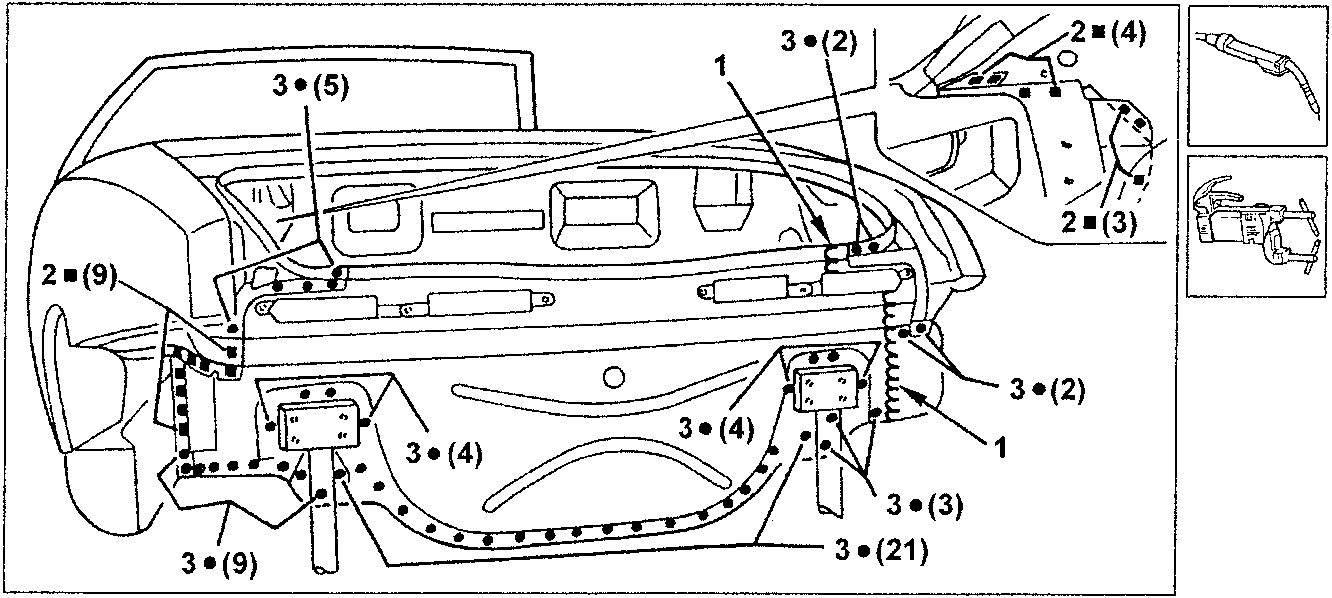

WELDING THE SPARE - REAR PANEL

  1. Seam weld using a MIG welder
  2. Fill weld using a MIG welder.
  3. Spot weld, as illustrated.
Diagram showing welding points and spot weld locations on the rear panel
