70 BodyworkPreparing the edges of the body

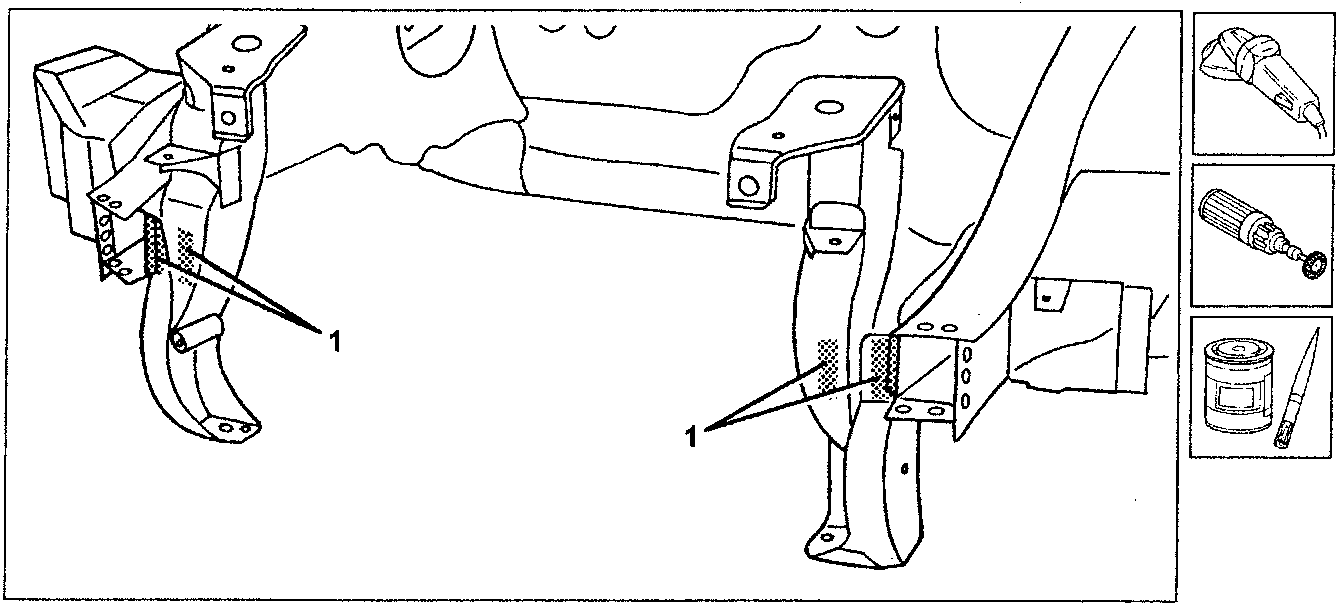

PREPARING THE EDGES OF THE BODY

  • Straighten the edges of the body.
  • Remove the welding spot remains using a disk sander.
  • Clean the areas involved by welding, using a rotary brush.
  1. Apply electro-galvanizing paint on the areas involved by spot welding.
Diagram showing body edges with welding spots and tools: disk sander, rotary brush, paint can and brush.

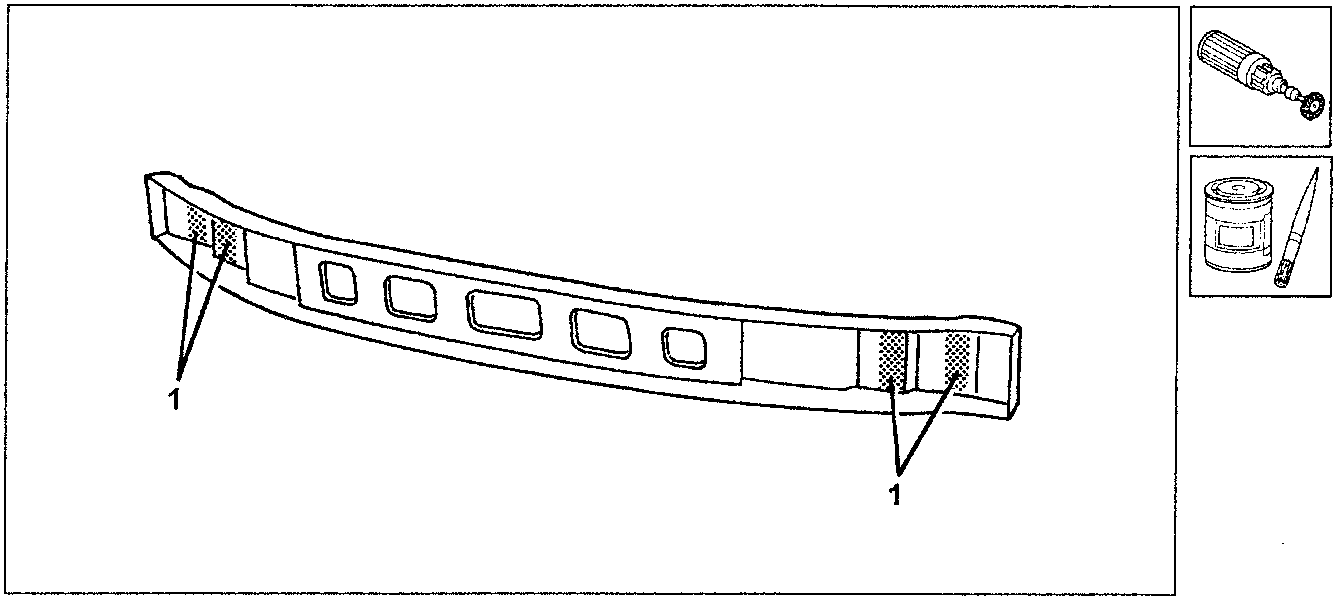

PREPARING THE SPARE - FRONT CROSSMEMBER

  • Clean the areas of the front crossmember involved by welding, using a rotary brush.
  1. Apply electro-galvanizing paint on the areas involved by spot welding.
Diagram showing front crossmember with welding spots and tools: rotary brush, paint can and brush.
