Preparing the spare - rear floor

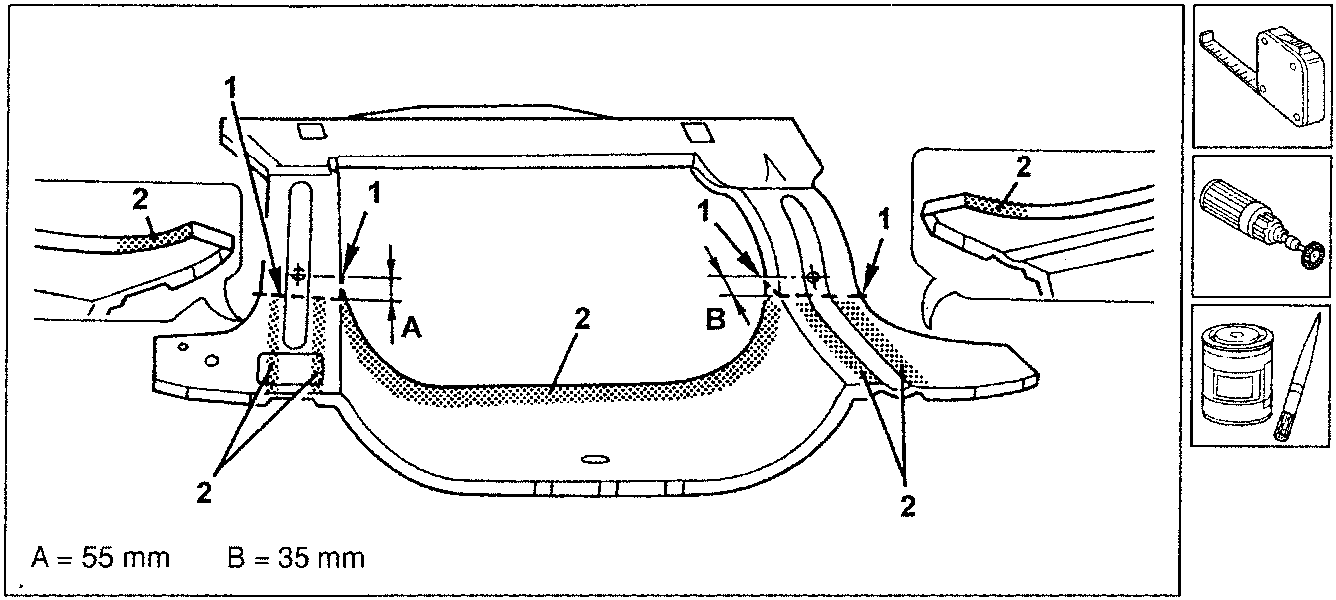

PREPARING THE SPARE - REAR FLOOR

1. Working on the bench and using a hacksaw, cut the new rear floor, where shown, observing the dimensions illustrated to keep a piece of sheet metal for the overlap.

• Clean the areas of involved by welding on the car, using a rotary brush.

2. Apply electro-galvanizing paint on the areas shown involved by spot welding.

A = 55 mm   B = 35 mm

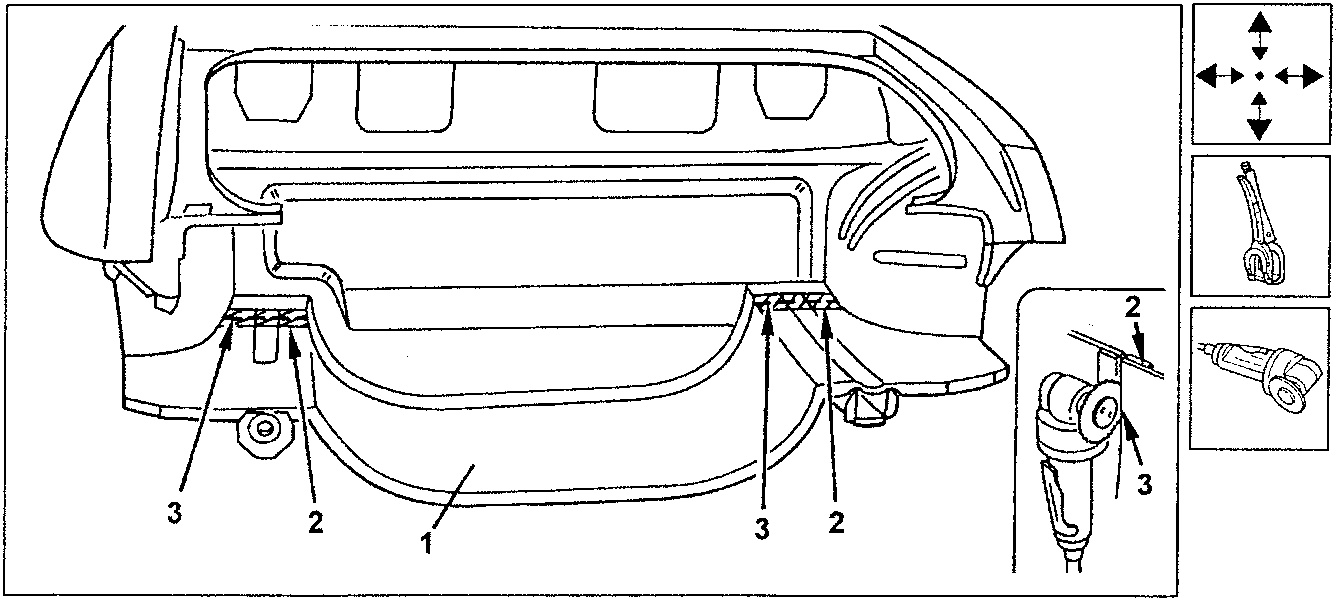

POSITIONING THE SPARE - REAR FLOOR

1. Position the rear floor correctly.
2. Overlay and clamp the components to be welded mating the edges and check alignment.
3. Trim the sheets eliminating the excess, using a circular saw; take care not to damage the sidemember below.
