Welding the spare - rear floor

WELDING THE SPARE - REAR FLOOR

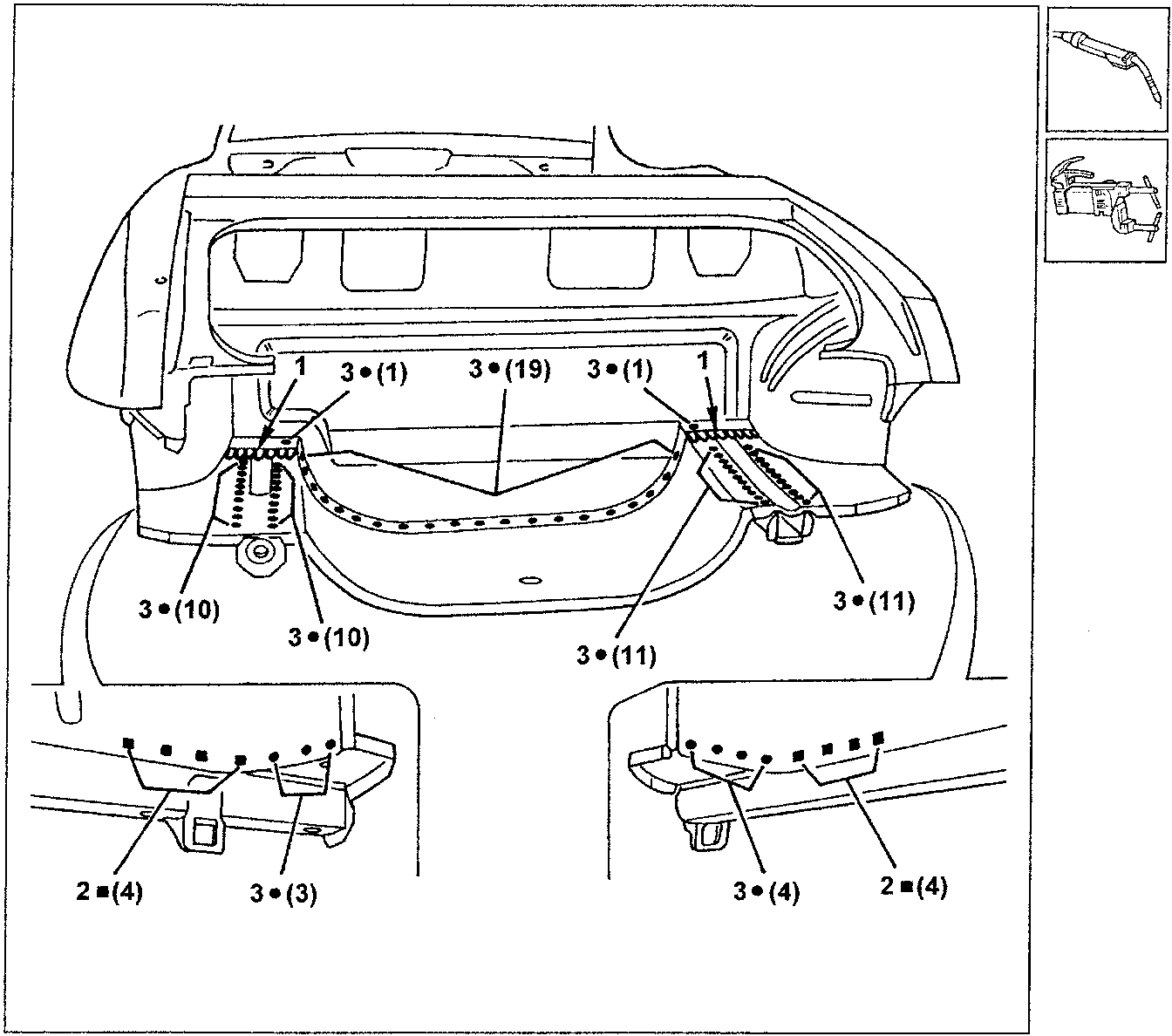

1. Seam weld using a MIG welder.
2. Fill weld using a MIG welder.
3. Spot weld as illustrated.

• Assemble the rear floor bracket (see: Replacing the Rear Floor Bracket").
• Assemble the rear panel (see: "Changing the Rear Panel").

FINISHING OPERATIONS

• Remove and level remains of welding, using a sander.
• Clean the welded areas, using a rotary brush.

PROTECTIONS

• apply the rust-proofing protection in the areas involved by MIG welding.
• Seal the joints, carry out the rust-proofing treatments and apply the sound-deadener panels referring to the general tables given in the Manual for the areas to be treated and the products to be used.
• Proceed with painting and waxing operations.
