Positioning the spare - windscreen pillar

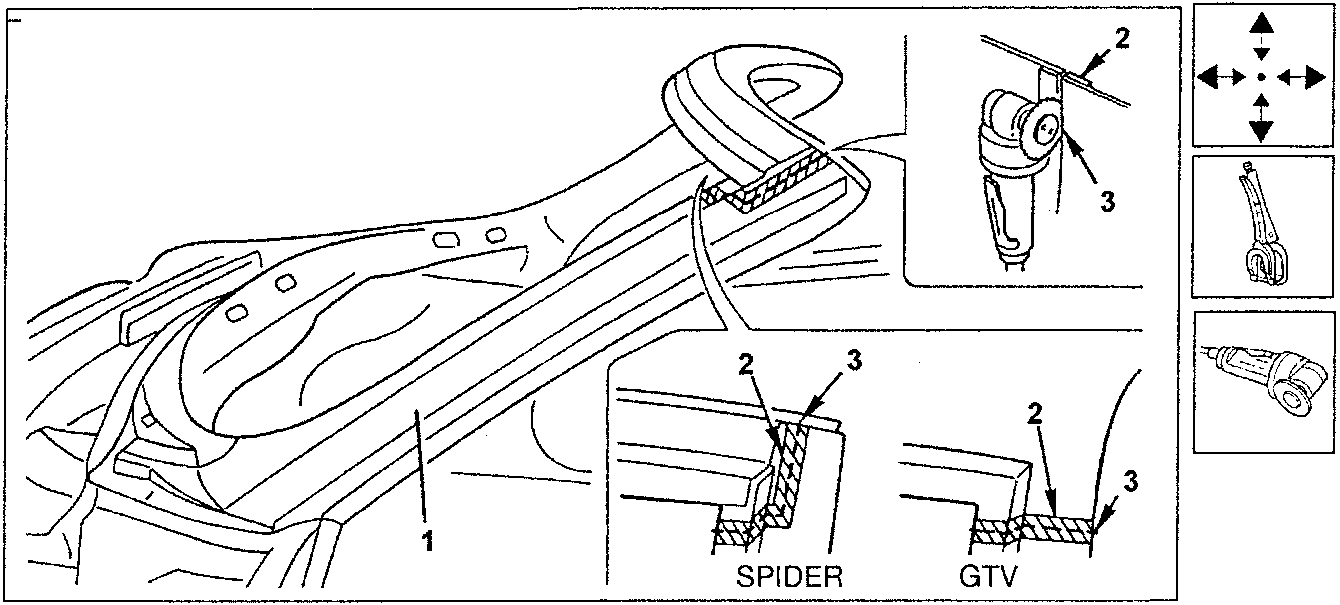

POSITIONING THE SPARE - WINDSCREEN PILLAR

1. Position the windscreen pillar correctly.
2. Overlay and clamp the components to be welded mating the edges and check alignment.
3. Trim the sheets eliminating the excess.

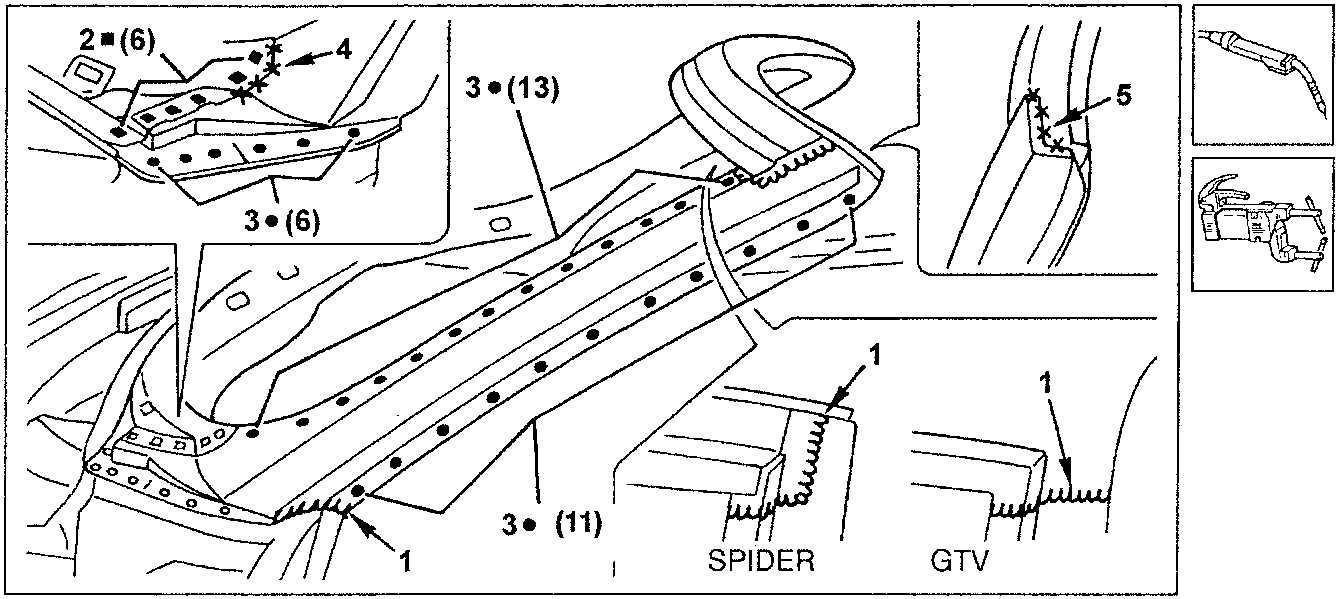

WELDING THE SPARE - WINDSCREEN PILLAR

1. Seam weld using a MIG welder.
2. Fill weld using a MIG welder.
3. Spot weld, as illustrated.
4. Braze weld in the area illustrated.
5. Braze weld in the area illustrated (for Spider only).

FINISHING OPERATIONS

• Remove and level remains of welding, using a sander.
• Clean the welded areas, using a rotary brush.

PROTECTIONS

• Apply rust proofing in the areas involved by MIG welding.
• Seal the joints and carry out the rust-proofing and foaming treatments referring to the general tables given in the Manual for the areas to be treated and the products to be used.
• Proceed with painting and waxing operations.
