70 BodyworkPreparing the spare - rear wing

PREPARING THE SPARE - REAR WING

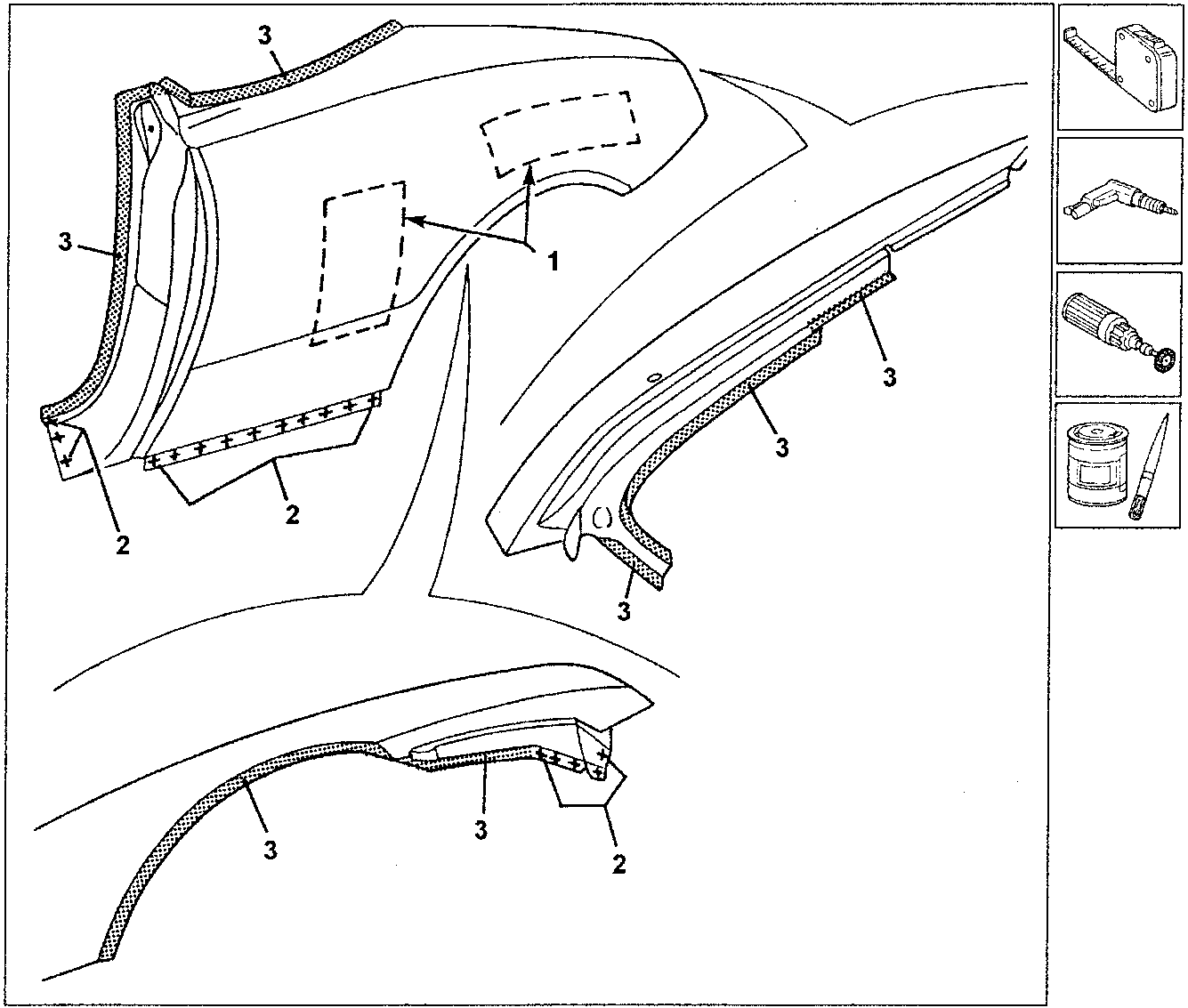

1. Check for the presence of the sound-deadener panels and fit them if they are lacking.
2. Working on the bench trace the wing and drill using a ø 5 mm bit as illustrated.
   • Clean the areas involved by welding on the vehicle, using a rotary brush.
3. Apply electro-galvanizing paint on the areas illustrated involved by spot welding.

1. Part 1
2. Part 2
3. Part 3
