Preparing the spare - underdoor panel

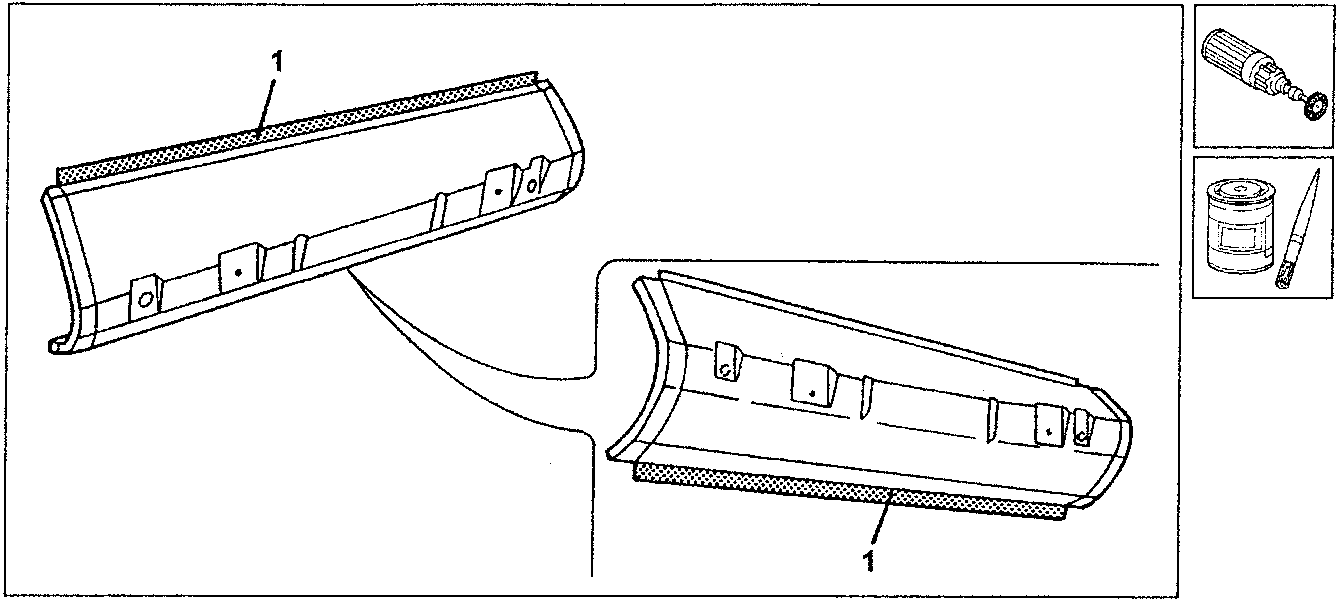

PREPARING THE SPARE - UNDERDOOR PANEL

• Clean the areas of the underdoor panel involved by welding using a rotary brush.

1. Apply electro-galvanizing paint on the areas involved by spot welding.

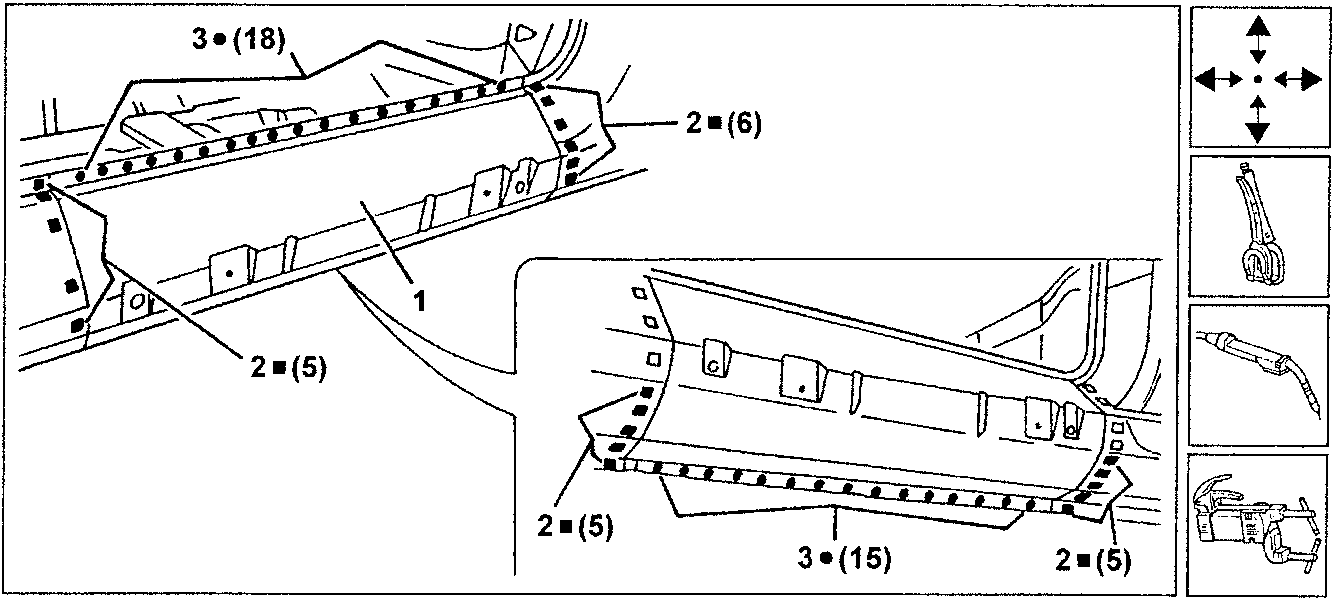

POSITIONING AND WELDING THE SPARE - UNDERDOOR PANEL

1. Position the underdoor panel correctly.
   - Clamp the components to be welded mating the edges and check alignment.
2. Fill weld using a MIG welder.
3. Spot weld, as illustrated.

FINISHING OPERATIONS

• Remove and level remains of welding, using a sander.
  - Clean the welded areas, using a rotary brush.

PROTECTIONS

• Apply rust proofing in the areas involved by MIG welding.
  - Seal the joints and carry out the rust-proofing treatments referring to the general tables given in the Manual for the areas to be treated and the products to be used.
  - Proceed with painting operations.
