70 BodyworkWelding the spare - inner panel

WELDING THE SPARE - INNER PANEL

  1. Seam weld using a MIG welder.
  2. Fill weld, using an MIG welder.
  3. Spot weld, as illustrated.

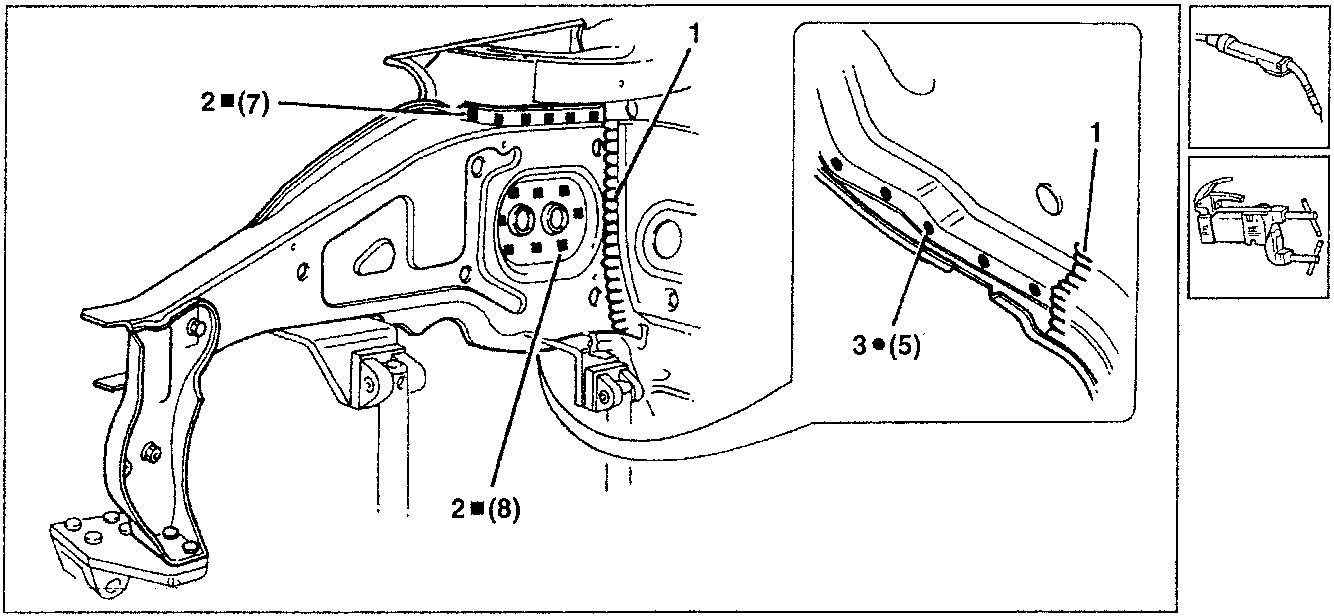

Diagram showing welding points on inner panel with callouts 2■(7), 2■(8), and 3●(5)

PREPARING THE SPARE - OUTER PANEL

  • Clean the perimeter of the outer panel and the areas involved in welding, using a rotary brush.
  • Apply electro-galvanizing paint on the areas involved by spot welding.

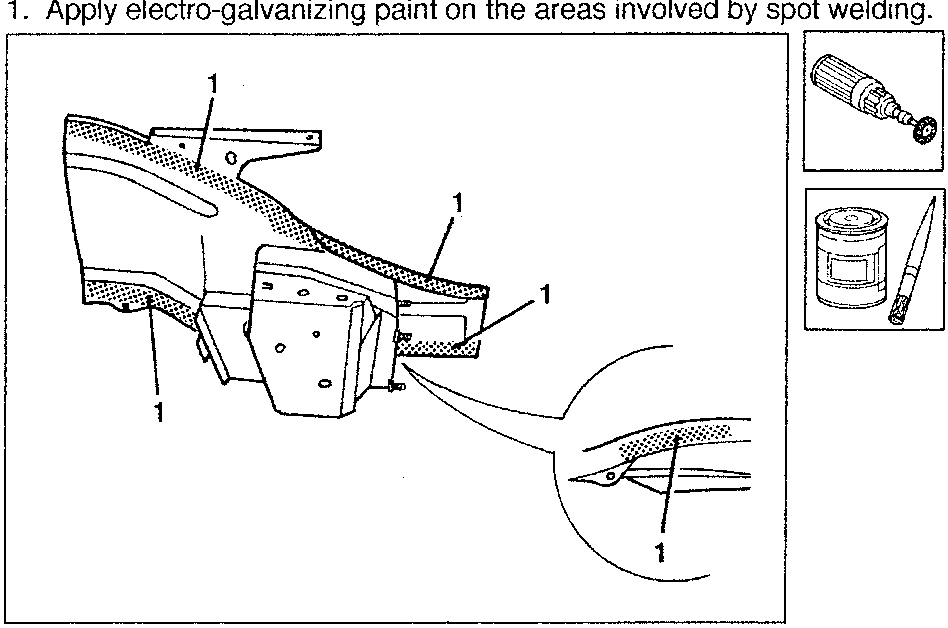

Diagram showing application of electro-galvanizing paint on outer panel
