70 BodyworkPreparing the spare - rear wing

PREPARING THE SPARE - REAR WING

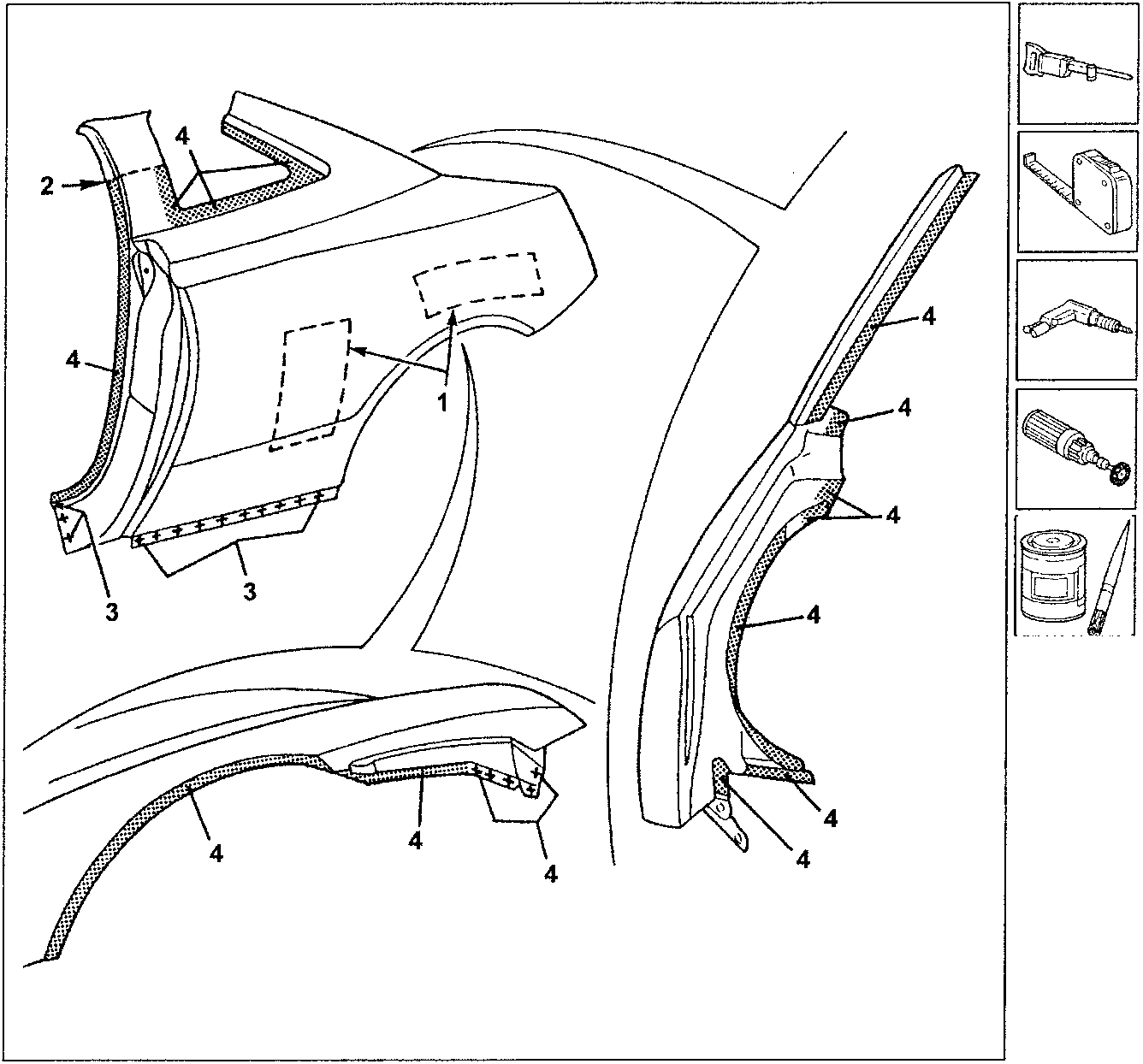

1. Check for the presence of the sound-deadener panels and fit them if they are lacking.
2. Working on the bench using a hacksaw cut the new wing as illustrated keeping a section of sheet metal for overlapping.
3. Trace the wing ad drill as illustrated using a ø 5 mm bit.
   - Clean the areas involved by welding on the vehicle, using a rotary brush.
4. Apply electro-galvanizing paint on the areas illustrated involved by spot welding.

1. Part 2
2. Part 3
3. Part 4
