CAMSHAFT SEAL SUPPORT IN CAMSHAFT HOUSING - R.R.

Operation 1036L40 · CAMSHAFTS (2) IN CAMSHAFT HOUSING (1)

1.4 16v

Removing

- Disconnect the negative battery terminal.

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 1048A32 HOSE FROM AIR FILTER TO INTAKE MANIFOLD - R + R

Op. 1056B82 INJECTION/IGNITION SYSTEM E.C.U. (ONE) - R + R

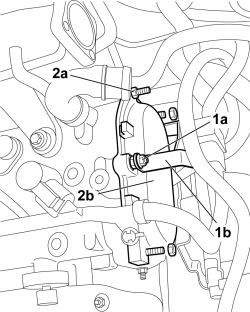

1. Undo the fixing nut (1a) and placethe front coupling bracket (1b) to one side.

2. Undo the nuts (2a) and remove the camshaft seal rear cover (2b) in the camshaft housing.

Refitting

- Check that the seal is intact, if not replace it.

- Fit the camshaft seal cover in the camshaft housing and tighten the fixing nuts.

- Reposition the support for the wiring front coupling and tighten the fixing nut.

Op. 1056B82 INJECTION/IGNITION SYSTEM E.C.U. (ONE) - R + R

Op. 1048A32 HOSE FROM AIR FILTER TO INTAKE MANIFOLD - R + R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

- Connect the negative battery terminal.
