EngineChain timing system

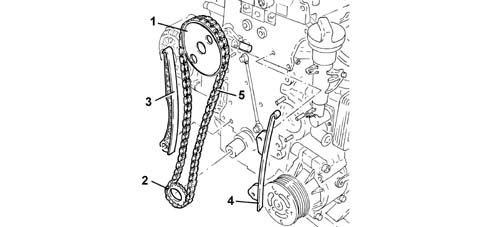

CHAIN TIMING SYSTEM
The timing is direct operation by means of a chain.
1. Driven gear
2. Drive gear
3. Moving pad
4. Fixed pad
5. Timing chain
