OVERHEAD CAMSHAFT IN CYLINDER HEAD - R.R ON VEHICLE

Operation 1036B10 · OVERHEAD CAMSHAFT (1) IN CYLINDER HEAD (1)

1.2 8v

Removing

- Position the vehicle on the lift.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 5530B10 BATTERY - R+R

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 1056B82 INJECTION/IGNITION SYSTEM E.C.U. (ONE) - R + R

Op. 1056B87 IGNITION/INJECTION SYSTEM CONTROL UNIT SUPPORT - R.R

Op. 5510C30 ENGINE TIMING SENSOR - R+R

Op. 1016A20 SINGLE TAPPET COVER - R.R. AND REPLACE GASKET

Op. 1032D26 TIMING SYSTEM FRONT PROTECTIVE COVER (UPPER PART) - R.R.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 4410D22 BRACKET FIXING FRONT SUSPENSION CROSSMEMBER TO BODYSHELL (ONE), LEFT OR RIGHT - R.R.

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 1092G11 ENGINE COMPONENTS SINGLE DRIVE BELT - R.R. FOR VERSIONS WITH AIR CONDITIONING

Op. 1092A12 CRANKSHAFT PULLEY - R+R FOR VERSIONS WITH AIR CONDITIONING

Op. 1032D27 TIMING SYSTEM FRONT PROTECTIVE COVER (LOWER PART) - R.R.

Op. 1032B14 TOOTHED TIMING BELT - R + R FOR TIMING ADJUSTMENT OR REPLACEMENT VERSIONS WITH AIR CONDITIONER

Op. 1032B62 TIMING BELT TOOTHED PULLEY - R.R. FOR VERSIONS WITH AIR CONDITIONING

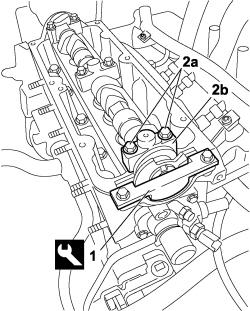

1. Remove the special tool used previously for stopping the rotation of the camshaft

2. Undo the bolts (2a) and remove the camshaft caps (2b).

1. Remove the camshaft from its housing.

Refitting

1. Place the camshaft (1a) in position, making sure that the reference (1b) is in the position illustrated.

2. Fit the camshaft locking tool.

3. Position the caps (3a) and tighten the fixing bolts (3b) to the recommended torque.

Op. 1032B62 TIMING BELT TOOTHED PULLEY - R.R. FOR VERSIONS WITH AIR CONDITIONING

Op. 1032B14 TOOTHED TIMING BELT - R + R FOR TIMING ADJUSTMENT OR REPLACEMENT VERSIONS WITH AIR CONDITIONER

Op. 1032D27 TIMING SYSTEM FRONT PROTECTIVE COVER (LOWER PART) - R.R.

Op. 1092A12 CRANKSHAFT PULLEY - R+R FOR VERSIONS WITH AIR CONDITIONING

Op. 1092G11 ENGINE COMPONENTS SINGLE DRIVE BELT - R.R. FOR VERSIONS WITH AIR CONDITIONING

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 4410D22 BRACKET FIXING FRONT SUSPENSION CROSSMEMBER TO BODYSHELL (ONE), LEFT OR RIGHT - R.R.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 1032D26 TIMING SYSTEM FRONT PROTECTIVE COVER (UPPER PART) - R.R.

Op. 1016A20 SINGLE TAPPET COVER - R.R. AND REPLACE GASKET

Op. 5510C30 ENGINE TIMING SENSOR - R+R

Op. 1056B87 IGNITION/INJECTION SYSTEM CONTROL UNIT SUPPORT - R.R

Op. 1056B82 INJECTION/IGNITION SYSTEM E.C.U. (ONE) - R + R

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 5530B10 BATTERY - R+R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

- Remove the vehicle from the lift.
