TIMING SYSTEM FRONT PROTECTIVE COVER (UPPER PART) - R.R.

Operation 1032D26 · TIMING SYSTEM PROTECTIONS

1.2 8v

Removing

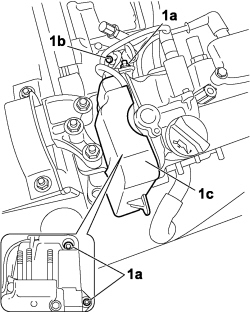

1. Undo retaining bolt (1a), release engine rpm sensor and variable valve timing wiring looms from retaining clip (1b) and remove protective cover (1c).

Refitting

- Position the protective cover in place and tighten the bolts.

- Attach the engine rpm sensor and variable valve timing wiring looms to the associated retaining clip.

1.4 16v

Removing

- Position the vehicle on a lift.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 4410D22 BRACKET FIXING FRONT SUSPENSION CROSSMEMBER TO BODYSHELL (ONE), LEFT OR RIGHT - R.R.

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

1. Undo the fixing bolts (1a) and remove the protective cover (1b), releasing the wiring for the rpm sensor (1c) from the housing on the cover.

Refitting

1. Place the upper cover (1a) in position, securing the wiring for the rpm sensor (1b) in the housing on the cover.

2. Tighten the upper cover bolts to the recommended torque.

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 4410D22 BRACKET FIXING FRONT SUSPENSION CROSSMEMBER TO BODYSHELL (ONE), LEFT OR RIGHT - R.R.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

- Remove the vehicle from the lift.
