TIMING SYSTEM FRONT PROTECTIVE COVER (LOWER PART) - R.R.

Operation 1032D27 · TIMING SYSTEM PROTECTIONS

1.2 8v

Removing

- Position the vehicle on a lift.

Op. 1032D26 TIMING SYSTEM FRONT PROTECTIVE COVER (UPPER PART) - R.R.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 4410D22 BRACKET FIXING FRONT SUSPENSION CROSSMEMBER TO BODYSHELL (ONE), LEFT OR RIGHT - R.R.

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 1092G11 ENGINE COMPONENTS SINGLE DRIVE BELT - R.R. FOR VERSIONS WITH AIR CONDITIONING

Op. 1092A12 CRANKSHAFT PULLEY - R+R FOR VERSIONS WITH AIR CONDITIONING

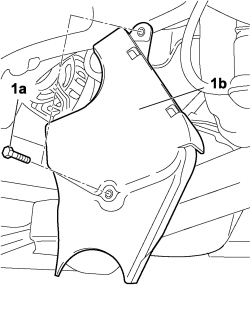

1. Undo the fixing bolts (1a) and remove the lower protective timing cover (1b) from its housing.

Refitting

- Place the lower timing protective cover in position.

- Tighten the fixing bolts.

Op. 1092A12 CRANKSHAFT PULLEY - R+R FOR VERSIONS WITH AIR CONDITIONING

Op. 1092G11 ENGINE COMPONENTS SINGLE DRIVE BELT - R.R. FOR VERSIONS WITH AIR CONDITIONING

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 4410D22 BRACKET FIXING FRONT SUSPENSION CROSSMEMBER TO BODYSHELL (ONE), LEFT OR RIGHT - R.R.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 1032D26 TIMING SYSTEM FRONT PROTECTIVE COVER (UPPER PART) - R.R.

- Remove the vehicle from the lift.

1.4 16v

Removing

- Position the vehicle on a lift.

Op. 0010T20 ENGINE COOLANT - CHANGE

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 4410D22 BRACKET FIXING FRONT SUSPENSION CROSSMEMBER TO BODYSHELL (ONE), LEFT OR RIGHT - R.R.

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 1032D26 TIMING SYSTEM FRONT PROTECTIVE COVER (UPPER PART) - R.R.

Op. 1088B10 ENGINE COOLANT SUPPLY RESERVOIR - R.R.

Op. 1008B10 POWER UNIT FRONT SUPPORT FLEXIBLE MOUNTING (TIMING SIDE) - REPLACE

Op. 1092G11 ENGINE COMPONENTS SINGLE DRIVE BELT - R.R. FOR VERSIONS WITH AIR CONDITIONING

Op. 1092A12 CRANKSHAFT PULLEY - R+R FOR VERSIONS WITH AIR CONDITIONING

1. Undo the fixing bolt (1a) and remove the protective cover (1b) from its housing releasing the wiring for the rpm sensor from the seat in the cover.

Refitting

1. Place the lower cover (1a) in position securing the wiring for the rpm sensor in place on the cover and tighten the fixing bolts (1b) to the recommended torque.

Op. 1092A12 CRANKSHAFT PULLEY - R+R FOR VERSIONS WITH AIR CONDITIONING

Op. 1092G11 ENGINE COMPONENTS SINGLE DRIVE BELT - R.R. FOR VERSIONS WITH AIR CONDITIONING

Op. 1008B10 POWER UNIT FRONT SUPPORT FLEXIBLE MOUNTING (TIMING SIDE) - REPLACE

Op. 1088B10 ENGINE COOLANT SUPPLY RESERVOIR - R.R.

Op. 1032D26 TIMING SYSTEM FRONT PROTECTIVE COVER (UPPER PART) - R.R.

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 4410D22 BRACKET FIXING FRONT SUSPENSION CROSSMEMBER TO BODYSHELL (ONE), LEFT OR RIGHT - R.R.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 0010T20 ENGINE COOLANT - CHANGE

- Remove the vehicle from the lift.
