Front end/side information
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Body dimensions › Front end/side information
Chassis and body dimensionsFront end/side information
Front end/side information

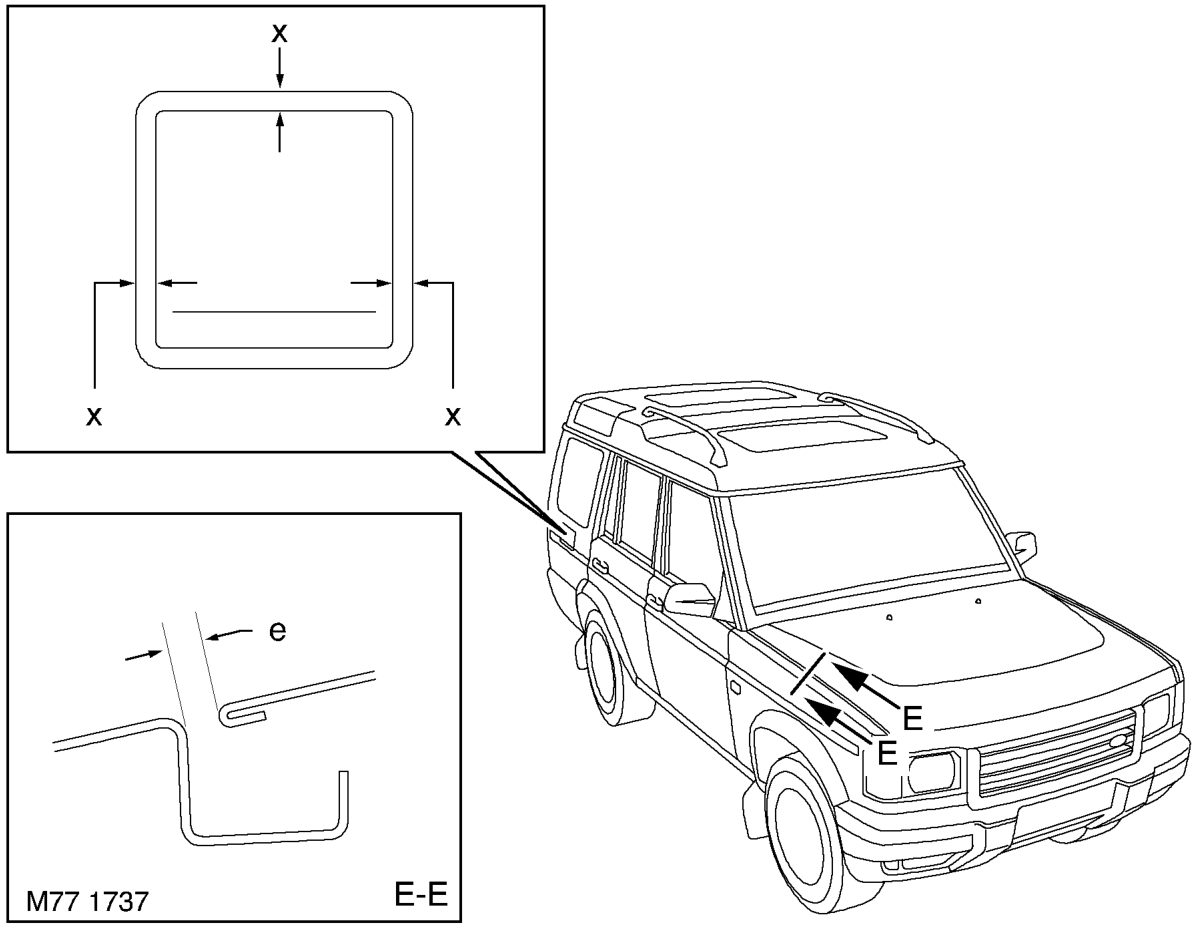

Gaps
| Section | Gap | Description | Dimension |
|---|---|---|---|
| E-E | e | Bonnet to wing | 6.0 (0.236) |
| x | Fuel filler lid to body side panel | 3.0 (0.118) |
The tolerance for gap 'e' is ± 1.0 (0.039), and for gap 'x' is ± 0.5 (0.019).
Profile
| Section | Description | Dimension |
|---|---|---|
| E-E | Profile of bonnet to wing | +1.0 (0.039) -0.0 |
