Side information

Make

Land Rover

Model

Discovery II (UK)

Section

Body dimensions › Side information

Chassis and body dimensionsSide information

Side information

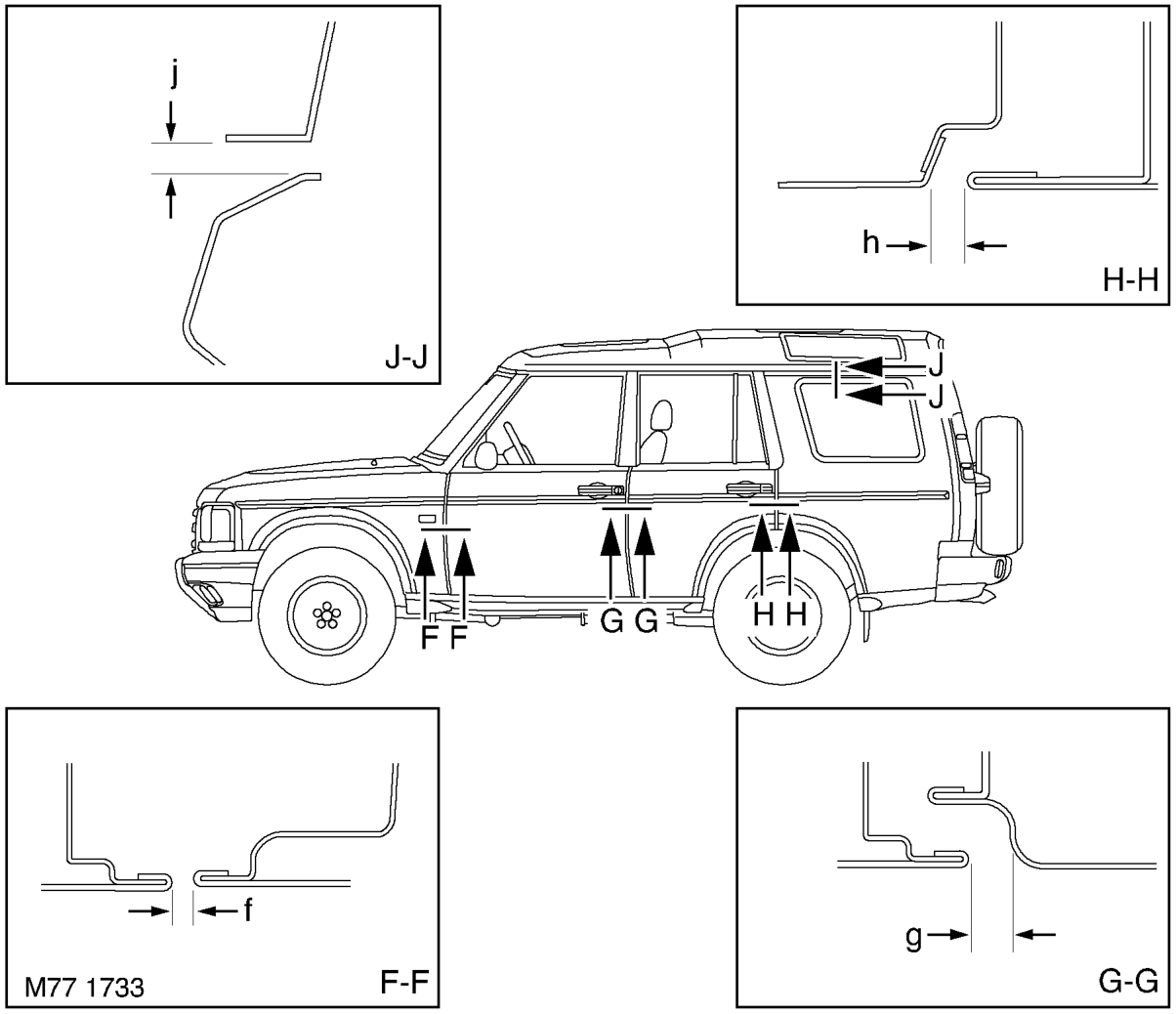

Gaps

Section	Gap	Description	Dimension
F-F	f	Wing to front door	6.0 (0.236)
G-G	g	Front door to rear door	6.0 (0.236)
H-H	h	Rear door to panel body side	6.0 (0.236)
J-J	j	Panel body side to roof	3.0 (0.118)

The tolerance for gap 'f', 'g' and 'h' is ± 1.0 (0.039), and for gap 'j' is ± 2.0 (0.078).

Profiles

Section	Description	Dimension
F-F	Profile of wing to front door	+1.0 (0.039) -0.0
G-G	Profile of front door to rear door	+1.0 (0.039) -0.0
H-H	Profile of rear door to panel body side	+1.0 (0.039) -0.0

40 Body & interior
