Chassis and body dimensionsRear end information
Rear end information

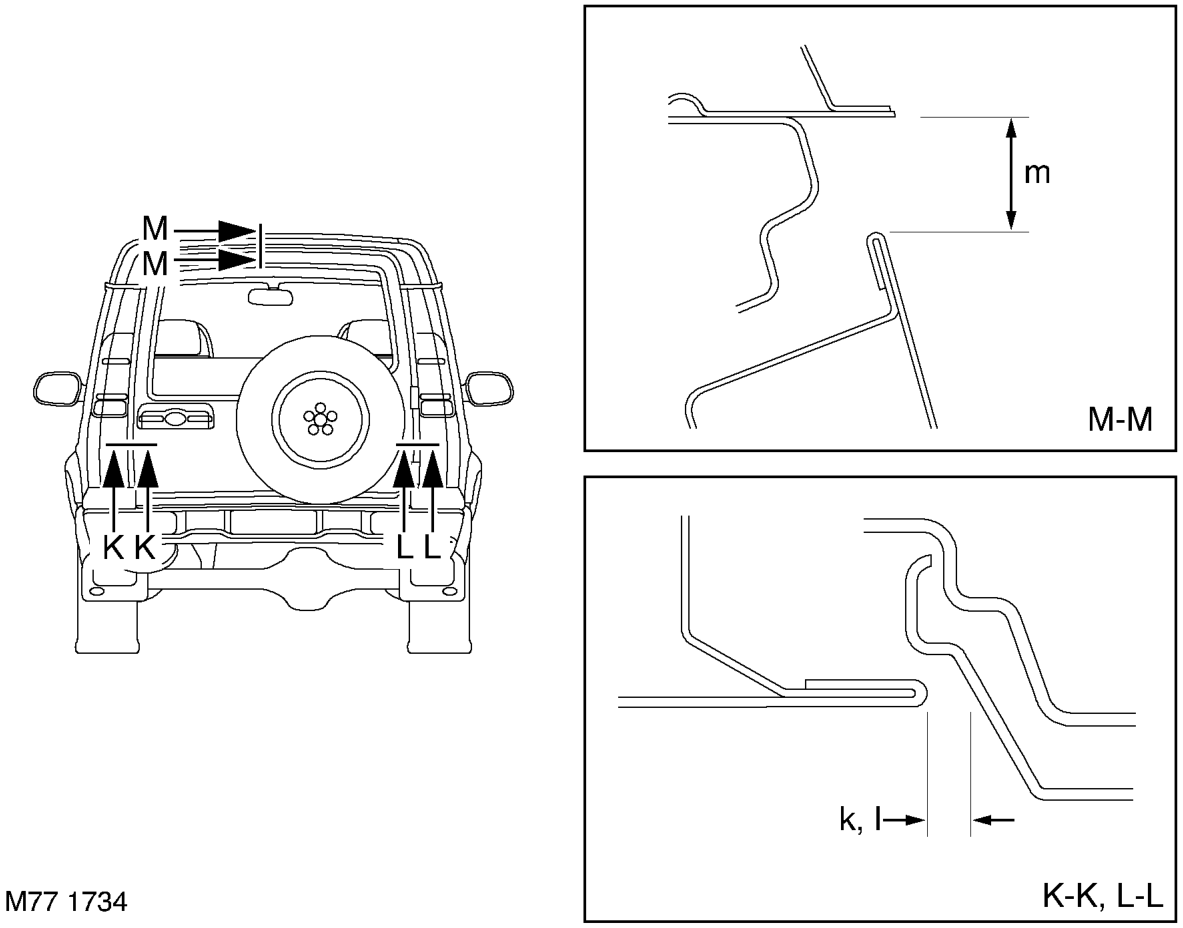

Gaps
| Section | Gap | Description | Dimension |
|---|---|---|---|
| K-K | k | Taildoor to body side panel | 7.0 (0.275) |
| L-L | l | Taildoor to body side panel | 7.0 (0.275) |
| M-M | m | Taildoor to roof | 23.0 (0.905) |
The tolerance for gap 'k' and 'l' is ± 1.0 (0.039), and for gap 'm' is ± 2.0 (0.078).
