Chassis and body dimensionsGaps and profiles
Gaps and profiles
Figures shown outside brackets are metric measurements (millimetres) and those inside brackets are imperial measurements (inches).

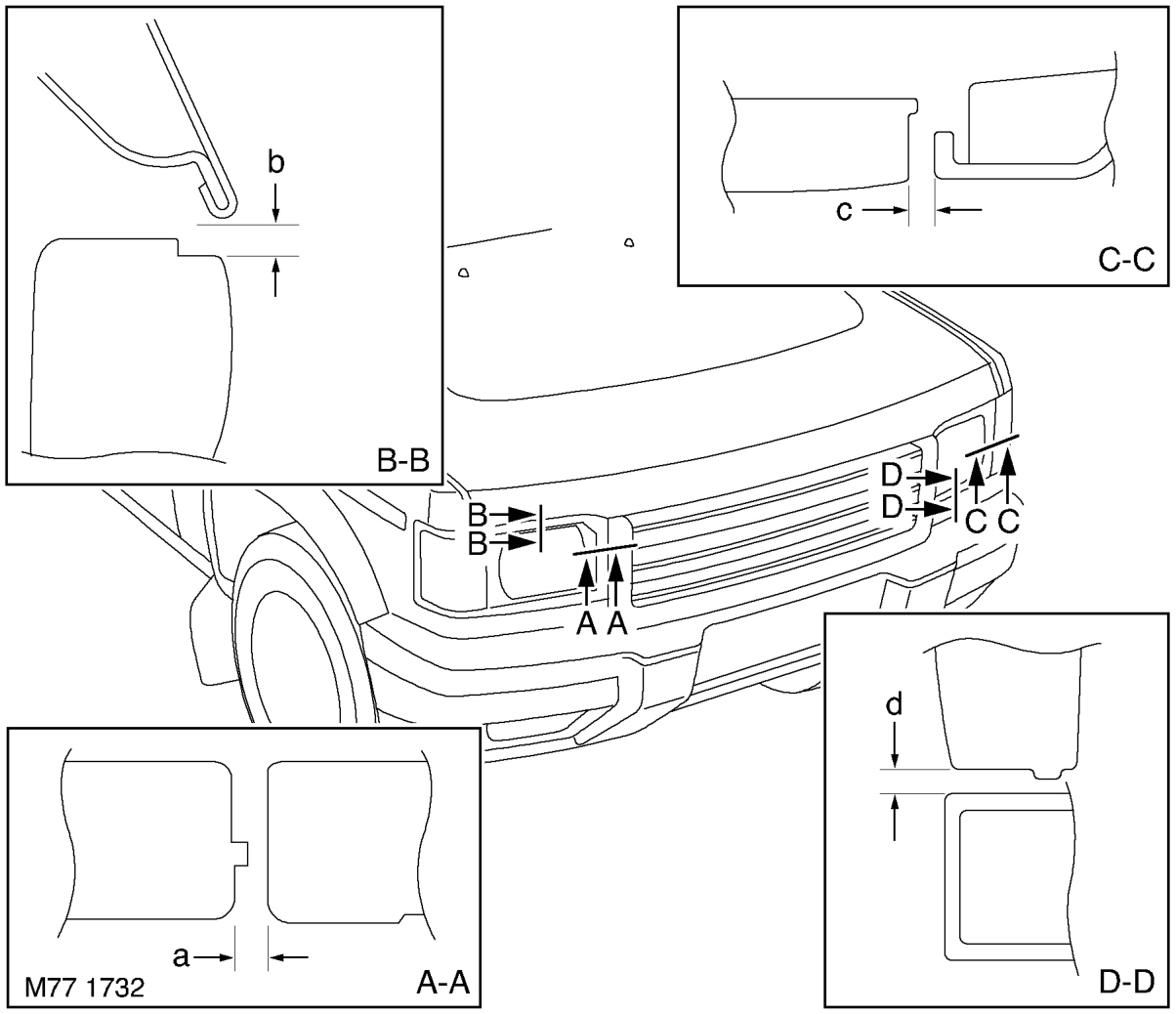

Front end information
Gaps
| Section | Gap | Description | Dimension |
|---|---|---|---|
| A-A | a | Headlamp to grille | 9.5 (0.374) |
| B-B | b | Headlamp to bonnet | 14.0 (0.551) |
| C-C | c | Headlamp to indicator lamp | 6.0 (0.236) |
| D-D | d | Headlamp to headlamp surround panel | 9.5 (0.374) |
The tolerance for the above figures is ± 1.0 (0.039).
