Harness - injectors - diesel (page 11 of 12)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
HarnessesHarness - injectors - diesel · page 11 of 12
Diagram

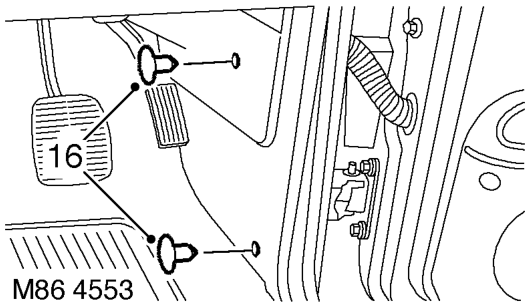

  1. Remove trim fixings securing toe board and remove toe board.
Remove trim fixings securing toe board and remove toe board.

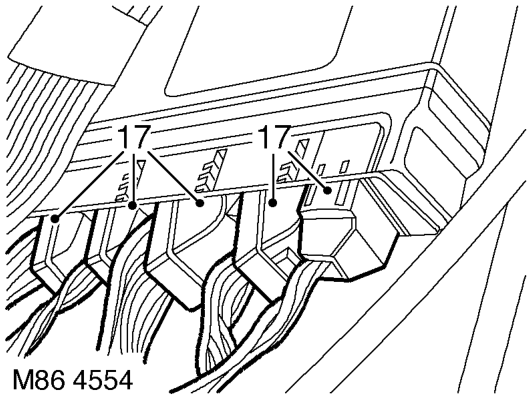

  1. Disconnect 5 multiplugs connecting engine harness to ECM.
  2. Release engine harness, pull into engine bay.
  3. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise front of vehicle.

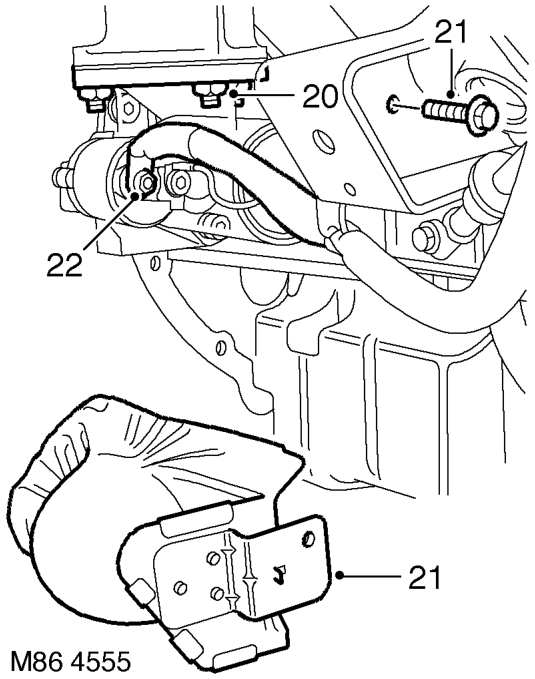

  1. Remove 3 nuts securing RH exhaust front pipe to manifold. Remove and discard gasket.
  2. Remove bolt securing starter heat shield and remove heat shield.
  3. Remove nut securing battery cable to starter and disconnect solenoid cable.
Remove nut securing battery cable to starter and disconnect solenoid cable.

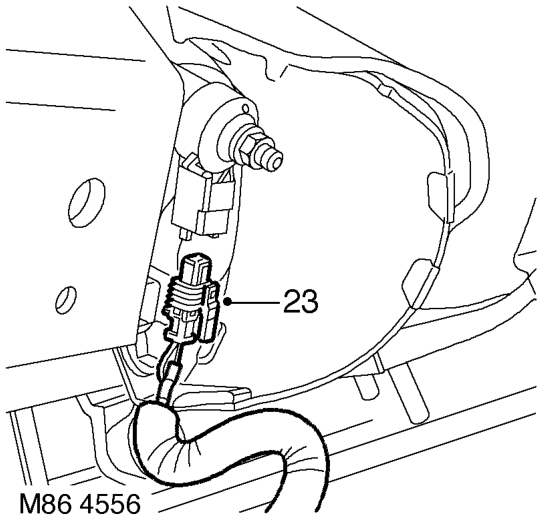

  1. Disconnect both knock sensor multiplugs.
