Land Rover Discovery II (UK)54 · Harnesses
54 · General

Harness - injectors - diesel (page 2 of 12)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
HarnessesHarness - injectors - diesel · page 2 of 12
Diagram

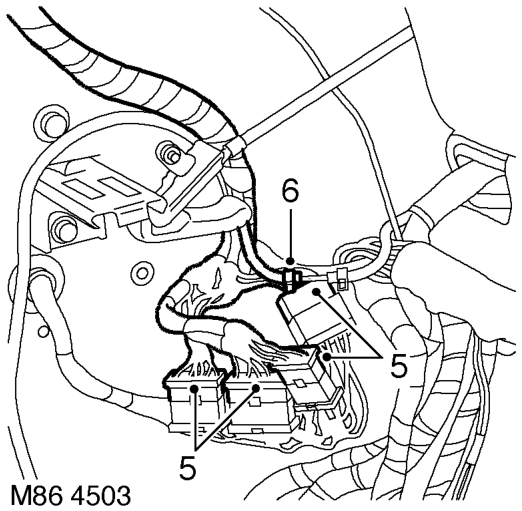

  1. Release and disconnect 4 multiplugs from LH lower 'A' post.
  2. Release clip and disconnect rear washer pipe from LH lower 'A' post.

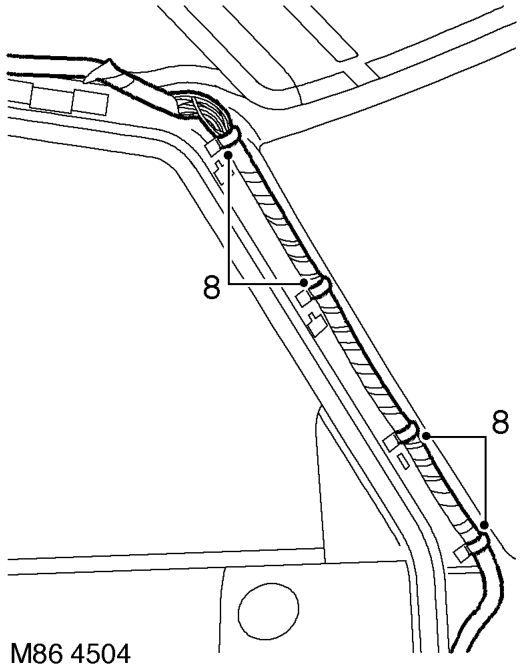

  3. Release harness from behind bonnet release cable.
Release harness from behind bonnet release cable.
  1. Disconnect multiplug from ACE accelerometer.
  2. Disconnect multiplug from interior mirror.
  3. Feed harness through roof to upper 'A' post.
  4. Release 3 retainers securing harness to RH

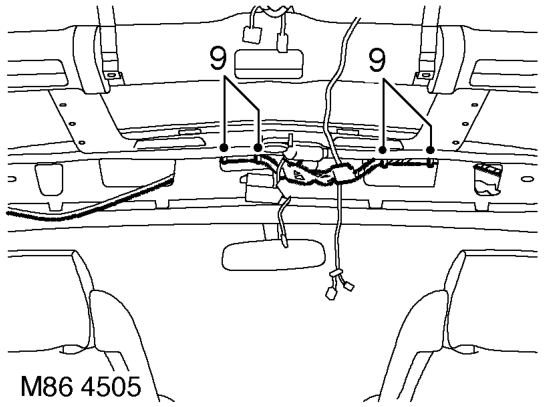

  5. Release harness from 4 retainers in LH upper 'A' post and collect protective sleeves.
Release harness from 4 retainers in LH upper 'A' post and collect protective sleeves.

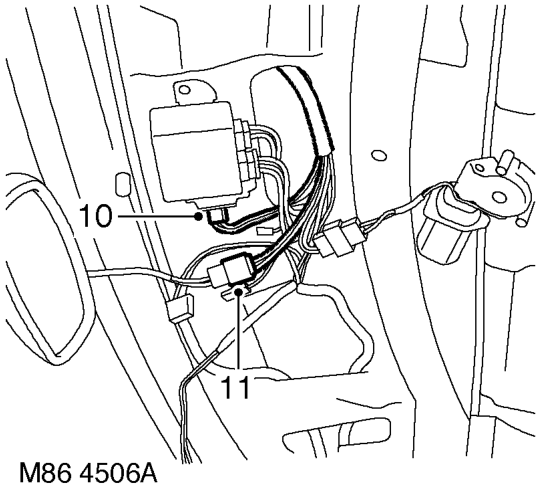

  1. Release 4 clips securing harness to centre of roof.
Release 4 clips securing harness to centre of roof.

roof panel.
