Land Rover Discovery II (UK)54 · Harnesses
54 · General

Harness - injectors - diesel (page 6 of 12)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
HarnessesHarness - injectors - diesel · page 6 of 12
Diagram

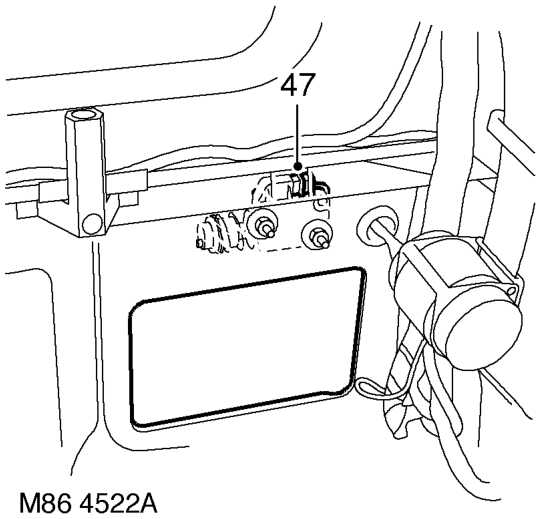

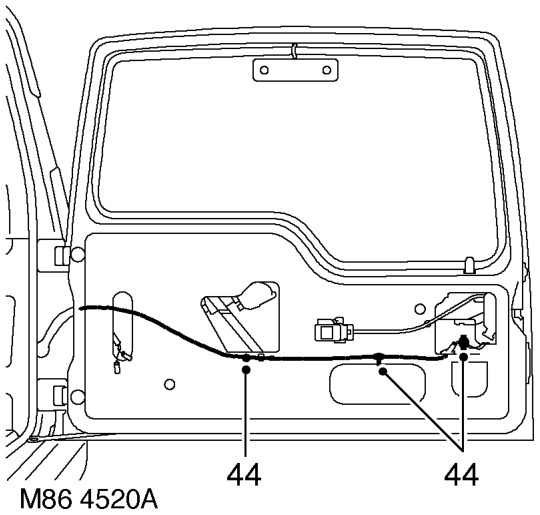

  1. Release 3 clips securing harness to tail door. 47. Disconnect multiplug from fuel flap solenoid.
Release 3 clips securing harness to tail door. 47. Disconnect multiplug from fuel flap sol

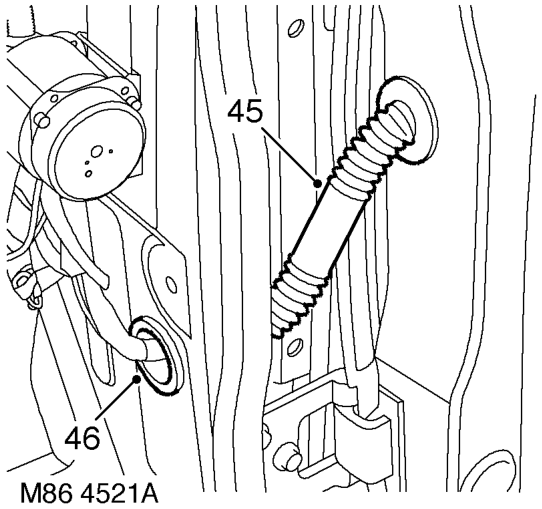

  1. Release harness sleeve from door outer edge and feed harness through door.
  2. Release grommet from 'E' post and feed tail door harness back to upper 'E' post.

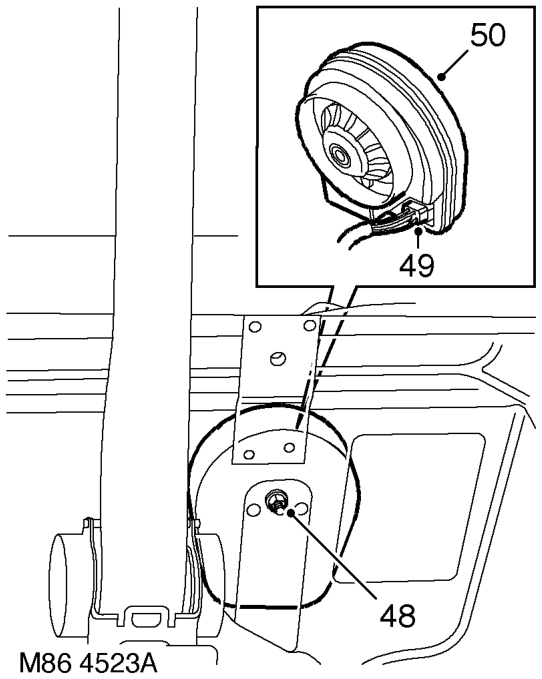

  3. Remove nut securing alarm sounder to RH
  4. Disconnect multiplug from alarm sounder.
  5. Remove alarm sounder.
Remove alarm sounder.
Remove alarm sounder.

lower 'E' post.
