Land Rover Discovery II (UK)23 · Manual gearbox - R380
23 · Transmission

Gearbox - Diesel (page 2 of 4)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Manual gearbox - R380Gearbox - Diesel · page 2 of 4
  1. Remove handbrake drum retaining screw and remove handbrake drum.

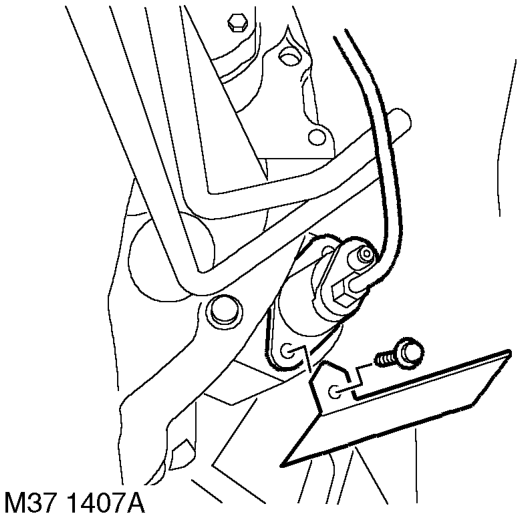

  2. Remove 4 bolts from handbrake back plate, release back plate and tie aside.
Remove 4 bolts from handbrake back plate, release back plate and tie aside.

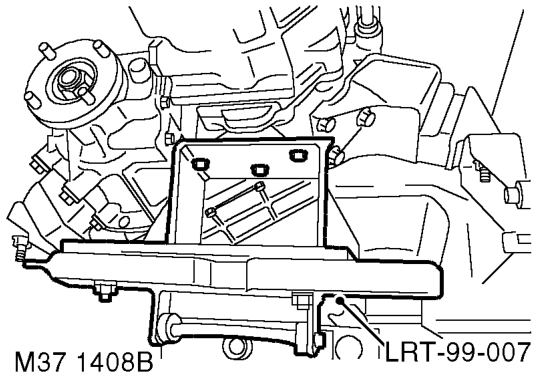

  1. Remove 2 bolts securing clutch slave cylinder, collect heat shield, release slave cylinder and position aside.
Remove 2 bolts securing clutch slave cylinder, collect heat shield, release slave cylinder
  1. Fit support plate LRT-99-007 to gearbox jack.

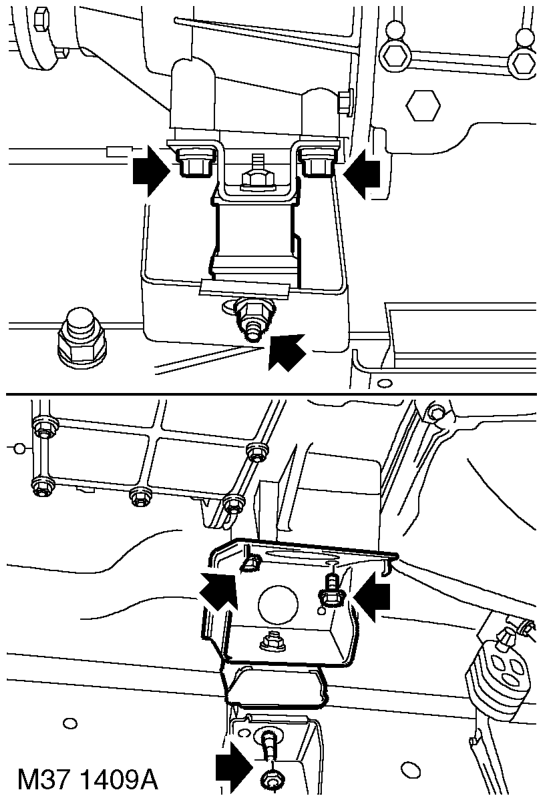

  2. Position gearbox jack and support plate to gearbox and secure with 3 bolts.
Position gearbox jack and support plate to gearbox and secure with 3 bolts.
  1. Support the weight of gearbox, remove nuts securing gearbox mountings to body.
  2. Remove 4 bolts securing both mountings to gearbox, raise gearbox and remove both mountings.

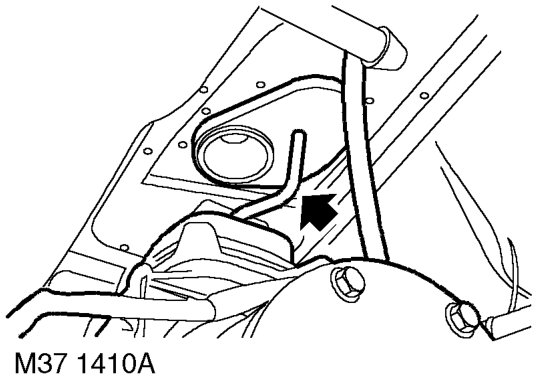

  3. Lower gearbox sufficiently to access top of gearbox.
Lower gearbox sufficiently to access top of gearbox.
  1. Ensure gear lever is released from grommet and no wires or pipes are trapped when gearbox is lowered.
