Air spring - SLS

Refit

Air spring - SLS

$% 64.21.01

Remove

1. Using TestBook, depressurise SLS air system. After depressurisation, approximately 1 bar 2

(15 lbf.in ) air pressure remains in the system.

2. Raise rear of vehicle and support under chassis.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

3. Remove road wheel.

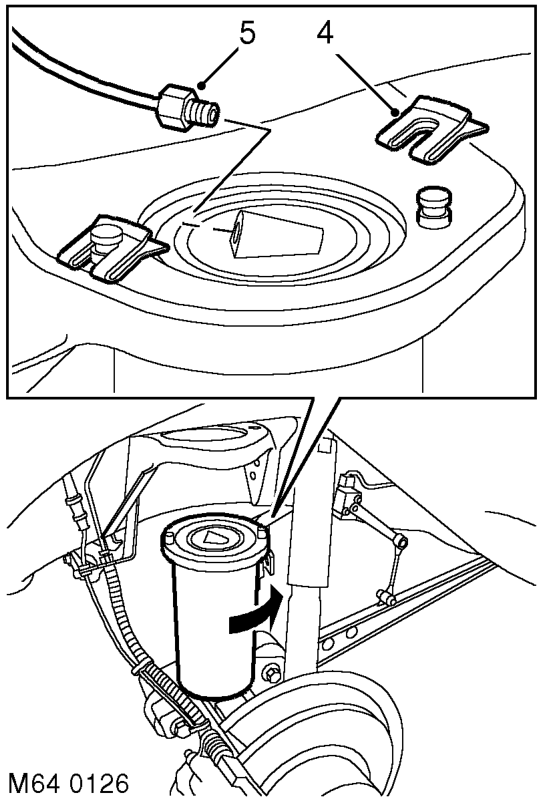

4. Remove 2 clips securing air spring to chassis.
5. Collapse air spring and disconnect pipe from top of air spring.

CAUTION: Always fit plugs to open connections to prevent contamination.

6. Rotate air spring, to unlock from axle and remove from vehicle.
7. Remove connector from pipe.
1. Clean mating faces of air spring, axle and chassis.
2. Fit pipe connector to air spring.
3. Locate air spring on axle and rotate 90° to fully engage bayonet fitting.
4. Connect pipe to top of air spring.
5. Engage top locating pins of air spring in chassis and secure with clips.
6. Fit road wheel and tighten nuts to 140 Nm (103 lbf.ft).
7. Remove stand(s) and lower vehicle.
