Rear suspensionAir valve - SLS

Air valve - SLS

$% 64.50.47

WARNING: Ensure the air suspension system is made safe before commencing work. Otherwise the chassis may lower onto the bump stops during repair.

Remove

  1. Using TestBook, depressurise SLS air system. After depressurisation, approximately 1 bar 2

(15 lbf.in ) air pressure remains in the system.

Air valve - sls – (15 lbf.in ) air pressure remains in the system.

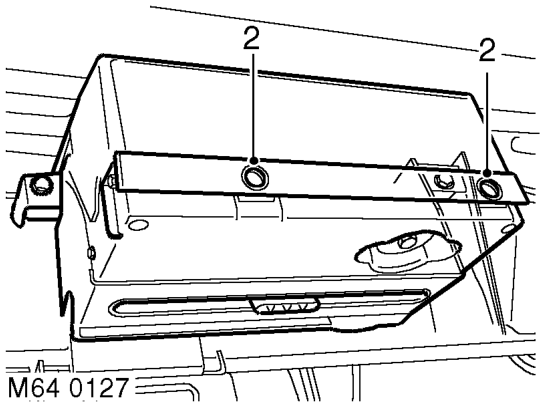

  1. Release 2 fasteners and remove air compressor unit cover.
Air valve - sls – Release 2 fasteners and remove air compressor unit cover.

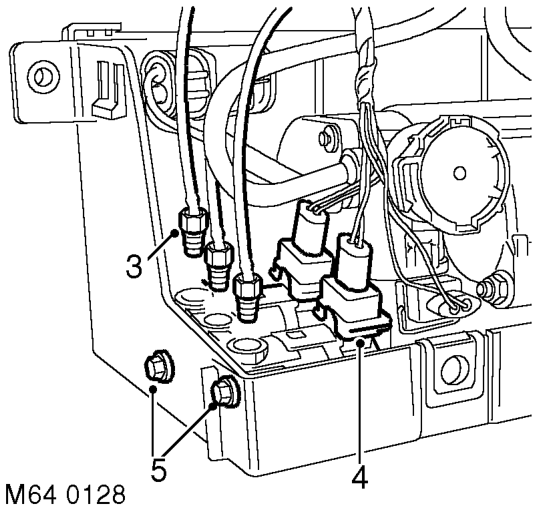

  1. Noting their fitted position, disconnect pipes from air valves and discard 'O' rings.
  2. Disconnect air valve multiplugs.
  3. Remove 2 bolts securing air valves and remove air valves.

Refit

  1. Position air valves and fit and tighten bolts.
  2. Connect air valve multiplugs.
  3. Connect air valve pipes.
  4. Ensure pipes are located in cut outs in casing.
  5. Position air compressor unit cover and lock fasteners.
