Actuator - rear - ACE

$% 64.60.40

CAUTION: The ACE hydraulic system is extremely sensitive to the ingress of dirt or debris. The smallest amount could render the system unserviceable. It is imperative that the following precautions are taken. l ACE components are thoroughly cleaned externally before work commences; l all opened pipe and module ports are capped immediately; l all fluid is stored in and administered through clean containers.

Models with SLS:

WARNING: Ensure the air suspension system is made safe before commencing work. Otherwise the chassis may lower onto the bump stops during repair.

Remove

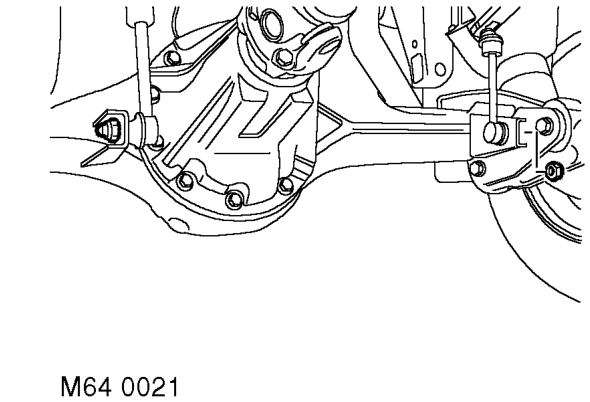

  1. Raise vehicle on ramp.
Models with sls: – Raise vehicle on ramp.
  1. Remove nuts securing anti-roll bar links to axle. Release links from axle.

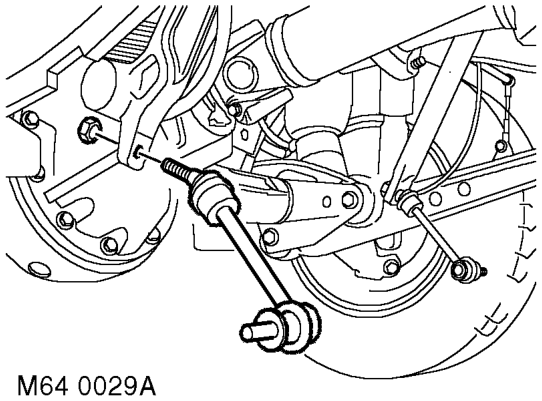

  2. Pull torsion bar down for access to actuator.
Models with sls: – Pull torsion bar down for access to actuator.
  1. Remove nut securing anti-roll bar link to long arm and remove link.

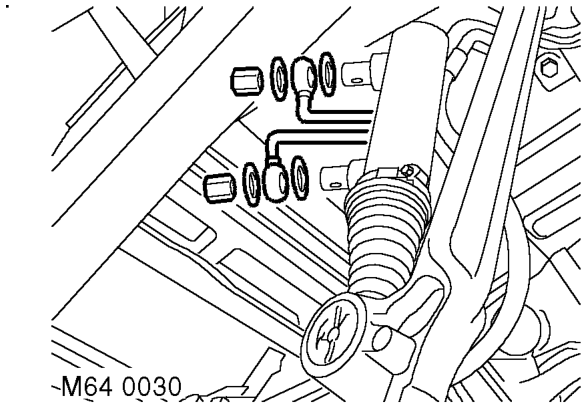

  2. Position container to collect fluid spillage.
Models with sls: – Position container to collect fluid spillage.
  1. Remove cap nuts securing fluid pipes to actuator. Disconnect pipes and remove and discard sealing washers.

CAUTION: Always fit plugs to open connections to prevent contamination.
