Steering (models): Adjustments

33. On completion stop engine, disconnect battery earth lead and syphon fluid from PAS reservoir. Power steering pressure check - V8 RHD
34. Remove test equipment from LRT-57-002.

models

35. Clean PAS pump and pipe union.
36. Fit new 'O' ring to high pressure pipe, align to

$% 57.90.10.01 PAS pump and tighten union to 25 Nm (18 lbf.ft). Check

37. Secure PAS pipes in clip.
38. Using new 'O' ring fit intake hose to air cleaner and secure clips.
39. Remove PAS reservoir filler cap, fill to level indicator and refit cap.
40. Connect battery earth lead.
41. Start engine and allow air to bleed from PAS system, by turning steering from lock to lock.
42. Visually check PAS system for leaks.
43. Clean chassis member.
44. Check power steering fluid, if aerated, wait until fluid is free from bubbles then top-up reservoir to 'UPPER' level mark.
45. Lower vehicle.
46. Dismantle test equipment.

1. Fit gauge and hose LRT-57-005 to valve assembly LRT-57-001, tighten union.
2. Fit 2 hoses LRT-57-002 to valve assembly LRT-57-001 and tighten unions.
3. Fit adaptor hoses LRT-57-041 to LRT-57-002 and tighten unions.
4. Disconnect battery earth lead.

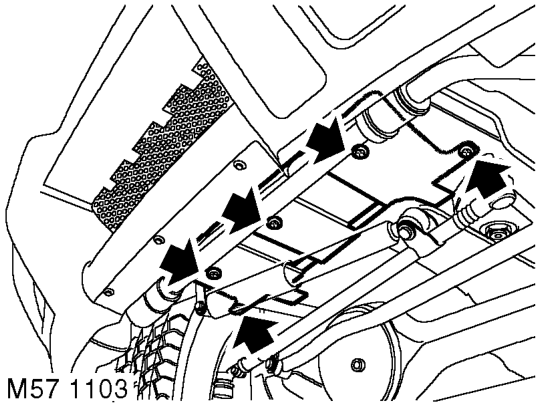

5. Remove 5 screws securing front splash shield to chassis. Remove shield.
6. Clean PAS fluid reservoir around filler cap and fluid level indicators.
