Land Rover Discovery II (UK)29 · Steering
29 · Steering & suspension

Power steering pressure check - diesel models

Make
Land Rover
Model
Discovery II (UK)
Section
Adjustments › Power steering pressure check - diesel models
SteeringPower steering pressure check - diesel models · page 1 of 2

Power steering pressure check - diesel models

$% 57.90.10.01

Check

Power steering pressure check - diesel models – $% 57.90.10.01
  1. Remove vacuum hose from turbocharger

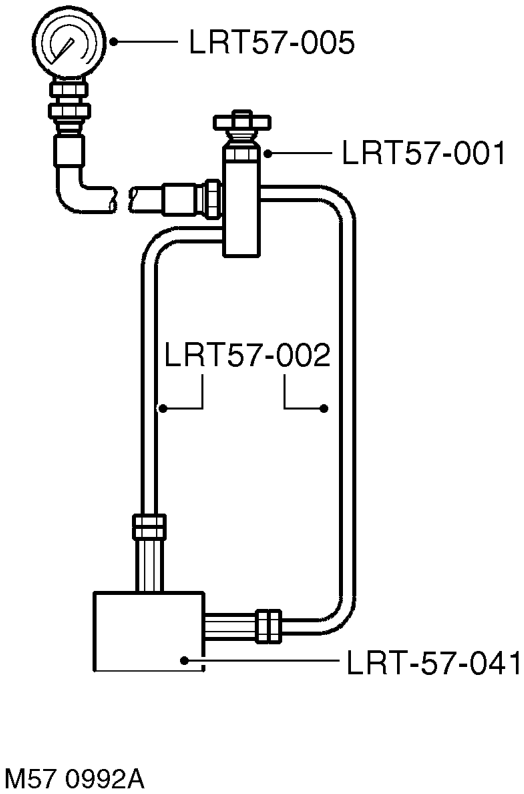

  2. Fit gauge and hose LRT- 57-005 to valve
  3. LHD only:

assembly LRT- 57-001 and tighten union.

  1. Fit 2 hoses LRT-57-002 to valve assembly LRT- 57-001 and tighten unions
  2. Fit adaptor and hose set LRT-57-041 to LRT- 57-002.
  3. Disconnect battery earth lead.
  4. Remove engine acoustic cover.
  5. LHD only: Remove underbelly panel. EXTERIOR FITTINGS, REPAIRS, Panel - underbelly.
  6. Clean steering box pipe housing.
M57 0902
  1. LHD only: Disconnect MAF sensor multiplug, release clips from air cleaner and move intake hose aside. Discard seal.
  2. Position container to collect PAS fluid spillage, and syphon fluid from PAS reservoir.
  3. LHD only: Release PAS reservoir from mounting move aside, for access to turbocharger intercooler pipe.
M57 0903

intercooler pipe. Release clips and disconnect turbocharger intercooler pipe from turbocharger and intercooler.

M57 0904
