COVER - INNER - TIMING BELT

Service repair no - 12.65.42

Remove

  1. Remove camshaft timing belt. See this section.

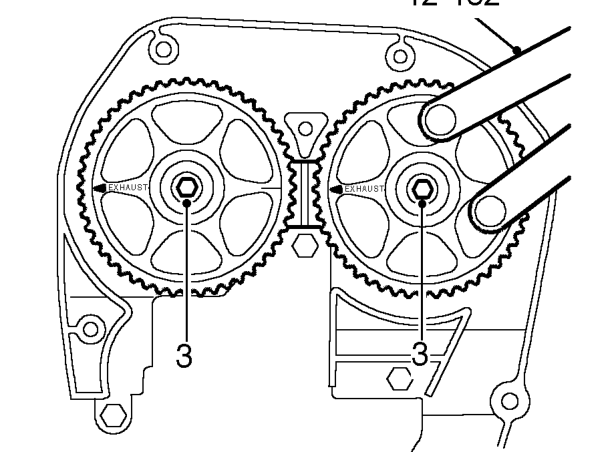

Cover - inner - timing belt – Remove camshaft timing belt. See this section.
  1. Restrain gears using camshaft gear holding tool 12-182.
  2. Remove 2 bolts and washers securing camshaft gears to camshaft.

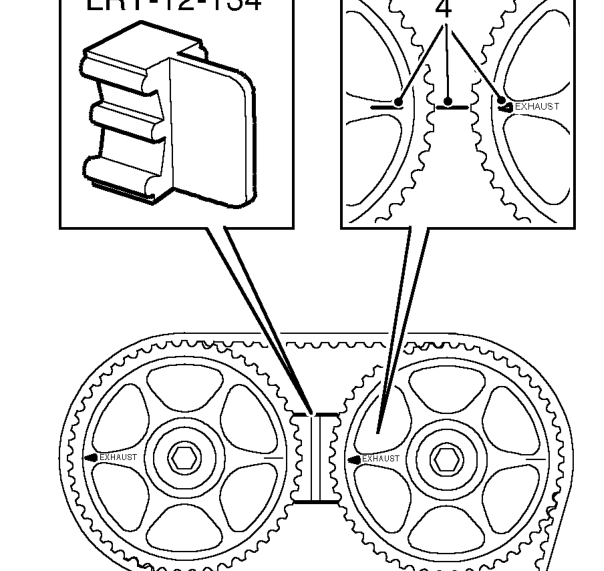

Cover - inner - timing belt – Remove 2 bolts and washers securing camshaft gears to camshaft.
  1. Check valve timing marks and remove camshaft gear alignment tool LRT-12-134.
  2. Remove camshaft gears.

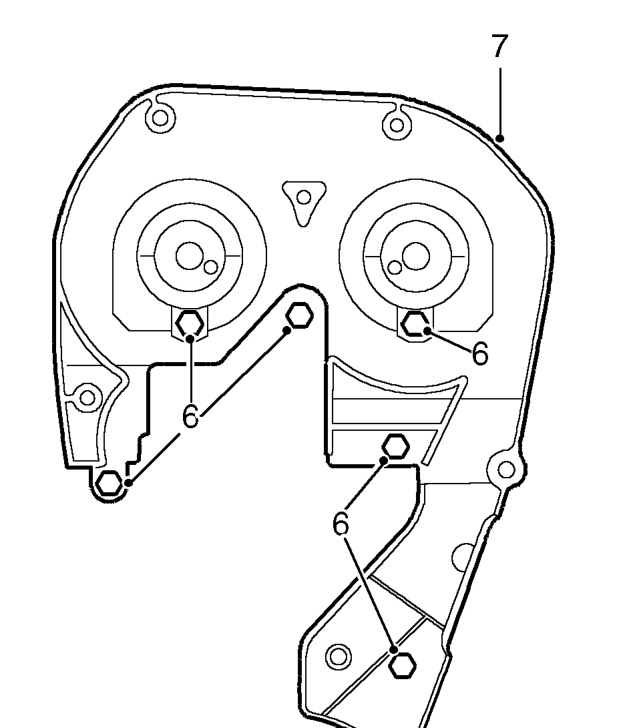

Cover - inner - timing belt – Remove camshaft gears.
  1. Remove bolts securing timing belt rear cover to cylinder block.
  2. Remove rear cover.

Refit

  1. Position timing belt rear cover to cylinder block.
  2. Fit and tighten bolts securing rear cover to cylinder block to 9 Nm.
  3. Clean camshaft timing gears.
  4. Fit 2 camshaft gears to their respective camshafts.
  5. Fit bolts and washers securing camshaft gears to camshafts. Using 12-182, restrain camshaft gears and tighten bolts to 65 Nm.
  6. Align camshaft gear timing marks.
  7. Fit camshaft gear locking tool LRT -12- 134.
  8. Fit camshaft timing belt. See this section.
