Land Rover Freelander Workshop Manual (1998-2000)05 · Engine - K Series
05 · Engine

Front oil seal

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Front oil seal
Engine - K SeriesFront oil seal
Diagram

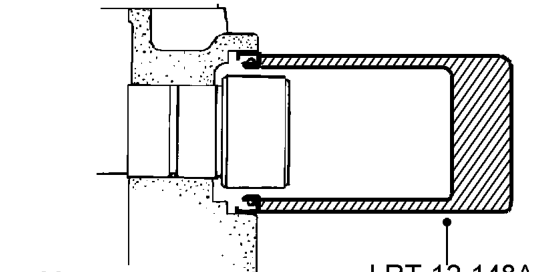

Front oil seal

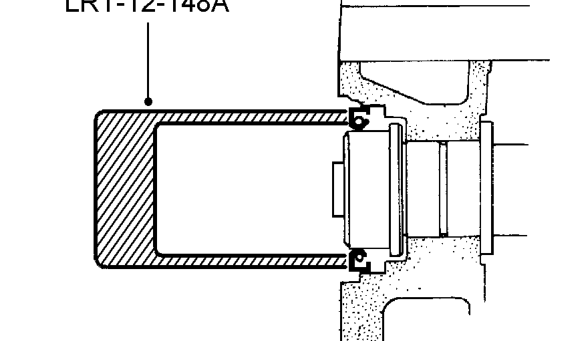

Front oil seal

Rear oil seal

NOTE: Front oil seals are coloured BLACK, rear oil seals are coloured RED.

  1. Fit new oil seals using tool LRT-12-148A.

CAUTION: Oil seals must be fitted dry. Do not use tool LRT-12-148.

  1. Fit camshaft cover. See this section.
  2. Position coil bracket, fit and tighten bolts to 25 Nm.
  3. Fit distributor cap and rotor arm. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  4. Fit and tighten 2 bolts securing camshaft timing belt rear cover to cylinder head.
  5. Restrain camshaft gears using tool 12-182 fit bolts and plain washers, tighten bolts to 65 Nm.
  6. Fit timing belt. See this section.

PULLEY - CRANKSHAFT - ’K’ SERIES

Service repair no - 12.21.01

Remove

  1. Disconnect battery earth lead.
  2. Remove alternator drive belt. See ELECTRICAL, Repairs.
  3. Remove starter motor, See ELECTRICAL, Repairs.
Pulley - crankshaft - ’k’ series – Remove starter motor, See ELECTRICAL, Repairs.

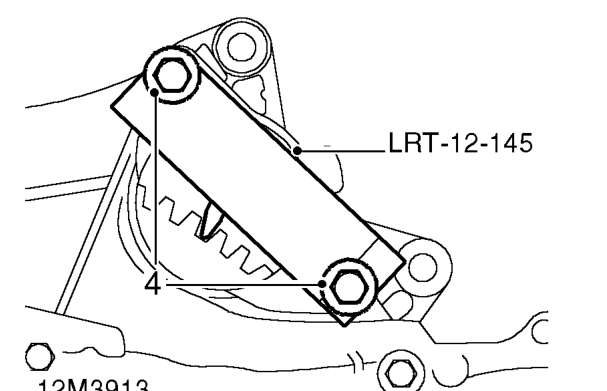

  1. Fit flywheel locking tool LRT-12-145 to flywheel housing and secure with 2 bolts.
Pulley - crankshaft - ’k’ series – Fit flywheel locking tool LRT-12-145 to flywheel housing and secure with 2 bolts.

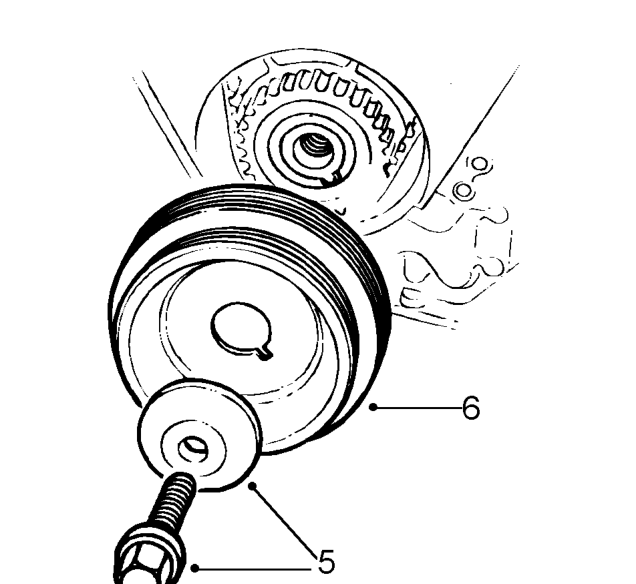

  1. Remove bolt securing pulley to crankshaft and collect washer.
  2. Remove crankshaft pulley.
