Engines fitted with manual timing belt tensioner

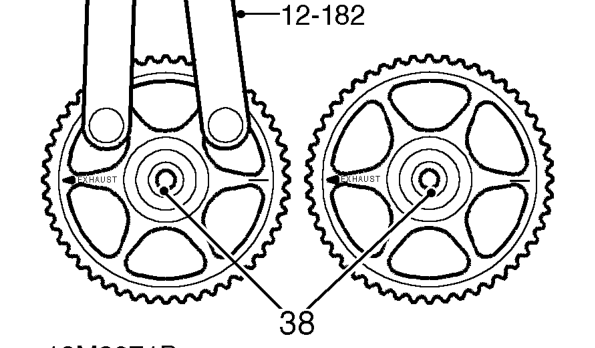

38. Fit bolts and plain washers securing camshaft gears to camshafts. Using tool 12-182, restrain camshaft gears and tighten bolts to 65 Nm.
39. Using tool 12-182, align camshaft gear timing marks and fit camshaft gear alignment tool LRT-12-134.

Engines fitted with manual timing belt tensioner

40. Fit camshaft timing belt tensioner to cylinder head.
41. Fit tensioner pulley Allen bolt.
42. Fit pillar bolt and spring supplied with replacement timing belt.

NOTE: This spring is not fitted with a sleeve.

43. Connect tensioner spring to pillar bolt on cylinder head.
44. Connect spring to tensioner.
45. Push tensioner pulley down to fully OFF position, fit and tighten backplate bolt to 10 Nm.

All engines

46. Fit new camshaft timing belt. See this section.
47. Remove stand(s) and lower vehicle.
48. Refill cooling system. See COOLING SYSTEM, Adjustments.
49. Connect battery earth lead.
50. Adjust throttle cable. See ENGINE MANAGEMENT SYSTEM - MEMS, Adjustments.

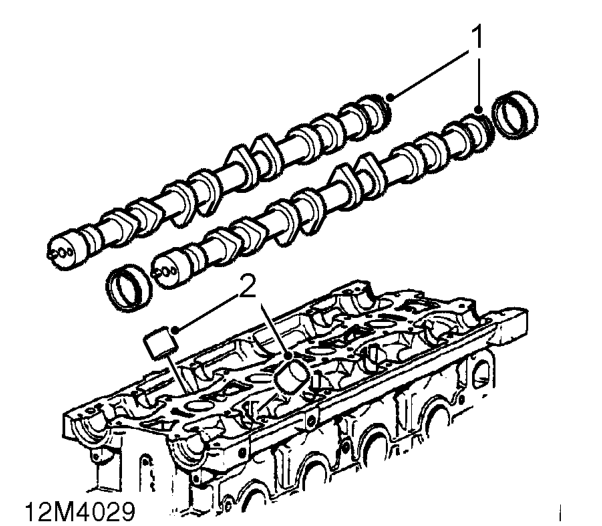

TAPPETS

Service repair no - 12.29.57

Remove

1. Remove camshafts. See this section.
2. Remove tappets

Refit

1. Clean tappets.
2. Lubricate tappets with clean engine oil.
3. Fit tappets.
4. Fit camshafts. See this section.
