Land Rover Freelander Workshop Manual (1998-2000)05 · Engine - K Series
05 · Engine

Seal - front - crankshaft

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Seal - front - crankshaft
Engine - K SeriesSeal - front - crankshaft

Refit

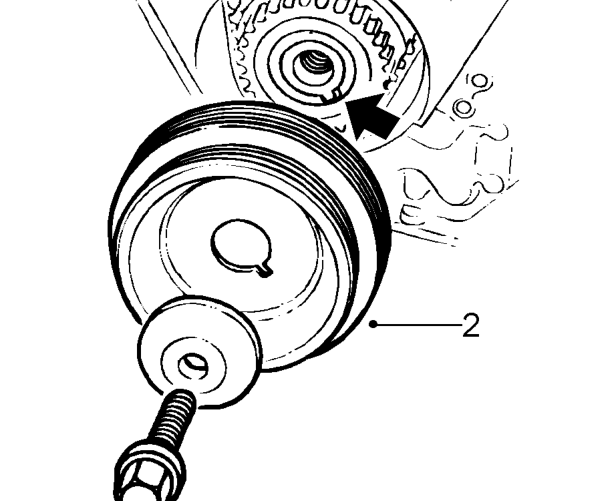

  1. Clean crankshaft pulley and gear.
Clean crankshaft pulley and gear.
  1. Fit crankshaft pulley to crankshaft gear ensuring that indent on pulley locates over lug on gear (arrowed in illustration).
  2. Fit washer and bolt securing crankshaft pulley to crankshaft and tighten to 205 Nm.
  3. Remove 2 bolts securing tool LRT-12-145 to flywheel housing and remove tool.
  4. Fit starter motor. See ELECTRICAL, Repairs.
  5. Fit alternator drive belt. See ELECTRICAL, Repairs.

SEAL - FRONT - CRANKSHAFT

Service repair no - 12.21.14

Remove

  1. Remove camshaft timing belt. See this section.
Seal - front - crankshaft – Remove camshaft timing belt. See this section.

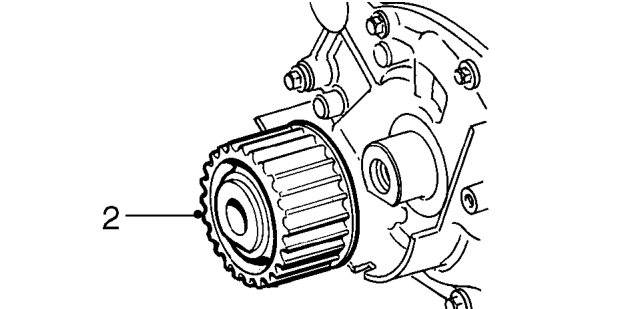

  1. Remove crankshaft gear.
Seal - front - crankshaft – Remove crankshaft gear.

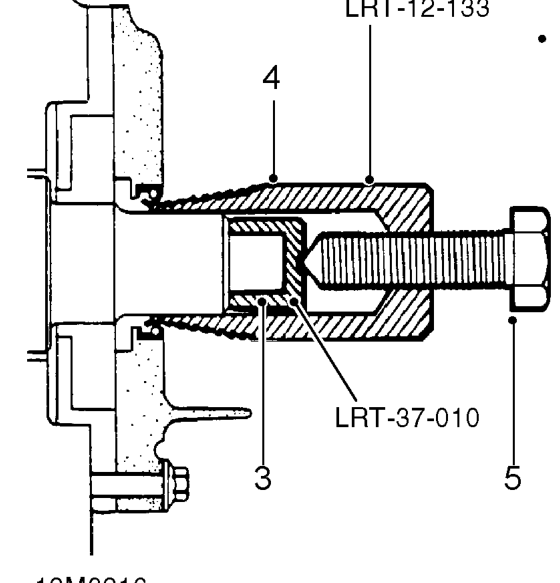

  1. Fit thrust button, tool LRT-37-010 to end of crankshaft.
  2. Ensure bore of tool LRT-12-133 is free from burrs.
  3. Screw tool LRT-12-133 into crankshaft front oil seal.
