Seal - rear - exhaust camshaft

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Seal - rear - exhaust camshaft
Engine - K SeriesSeal - rear - exhaust camshaft
  1. Clean camshaft gear.

CAUTION: If the sintered gears have been subjected to prolonged oil contamination, they must be soaked in a solvent bath and thoroughly washed in clean solvent before refitment. Because of the porous construction of sintered material, oil impregnated in the gear will emerge and contaminate a new timing belt.

  1. Fit bolt and washer securing camshaft gear to camshaft, fit camshaft gear.
  2. Use holding tool 12-182 to restrain camshaft gear.
  3. Fit bolt securing camshaft gear and tighten to 65 Nm.
  4. Align camshaft gear timing marks.
  5. Fit camshaft gear alignment tool. LRT-12-134.
  6. Fit NEW camshaft timing belt. See this section.
  7. Connect battery earth lead.

SEAL - REAR - EXHAUST CAMSHAFT

Service repair no - 12.13.08

Remove

  1. Disconnect battery earth lead.
  2. Remove air cleaner assembly, See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  3. Remove 2 bolts securing coil bracket, release coil and position aside.
Seal - rear - exhaust camshaft – Remove 2 bolts securing coil bracket, release coil and position aside.

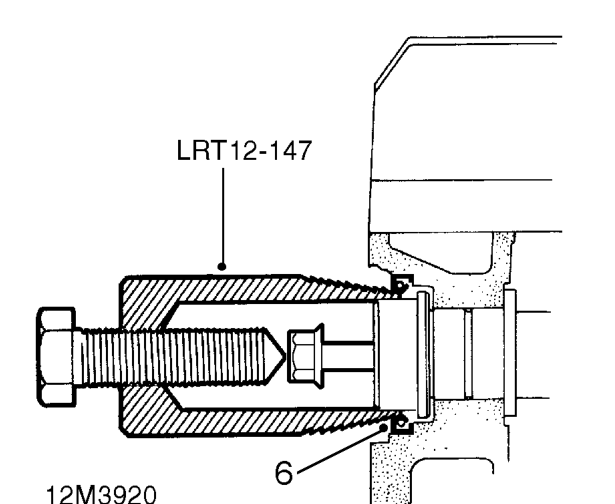

  1. Screw tool LRT-12-147 into camshaft rear oil seal.
  2. Remove oil seal by tightening centre bolt of tool LRT-12-147.
  3. Discard camshaft oil seal.
