PUMP - ENGINE OIL

Service repair no - 12.60.26

Remove

  1. Remove camshaft timing belt. See this section.
  2. Remove crankshaft gear.
  3. Remove PAS drive belt auto tensioner.

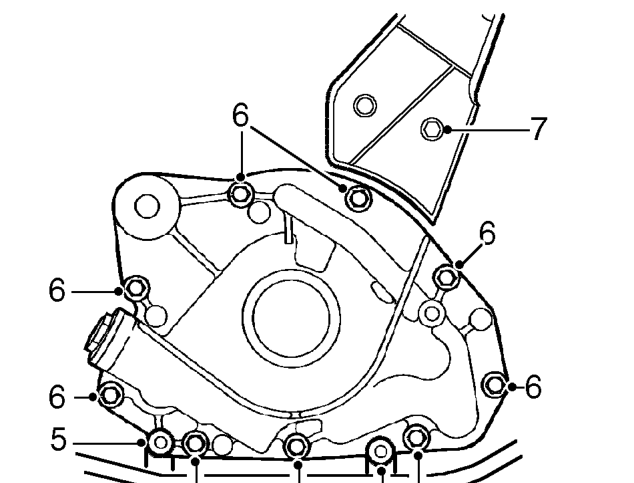

Pump - engine oil – Remove PAS drive belt auto tensioner.
  1. Remove 2 bolts securing engine harness to oil pump and release harness.
  2. Remove and discard bolts securing oil pump to cylinder block.
  3. Remove lower bolt from timing belt rear cover.
  4. Release rear cover to facilitate oil pump removal
  5. Remove oil pump and gasket.

Refit

  1. Clean oil pump bolt holes in cylinder block.
  2. Clean oil pump and mating face.
  3. Clean oil seal running surface on crankshaft.
  4. Fit new oil pump gasket, align and fit oil pump.

CAUTION: Do not lubricate front oil seal or running surface on crankshaft.

  1. Release rear cover to facilitate oil pump fitting.

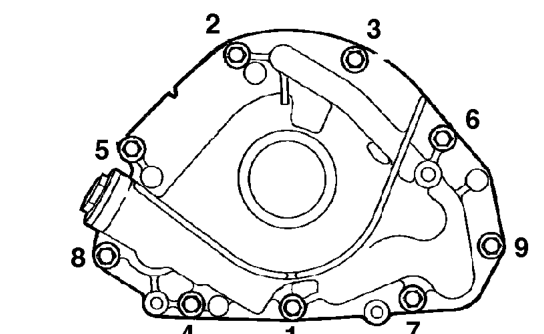

Pump - engine oil – Release rear cover to facilitate oil pump fitting.
  1. Fit new Patchlok bolts and tighten in sequence shown to 10 Nm.
  2. Position engine harness, fit and tighten bolts to 10 Nm.
  3. Fit and tighten lower bolt on timing belt rear cover to 9 Nm.
  4. Fit PAS auto tensioner and tighten bolts to 25 Nm.
  5. Clean crankshaft timing gear. Fit crankshaft gear.
  6. Fit camshaft timing belt. See this section.
