SWITCH - OIL PRESSURE - ’K’ SERIES

Service repair no - 12.60.50

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle, RH side.

WARNING: Support on safety stands.

  1. Turn steering wheel to full RH lock.
Switch - oil pressure - ’k’ series – Turn steering wheel to full RH lock.

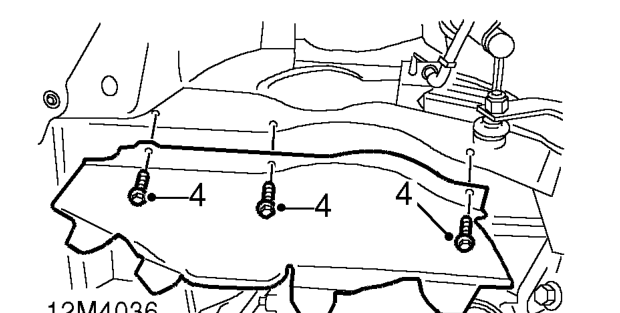

  1. Remove 3 bolts securing RH splash shield and remove guard.
Switch - oil pressure - ’k’ series – Remove 3 bolts securing RH splash shield and remove guard.

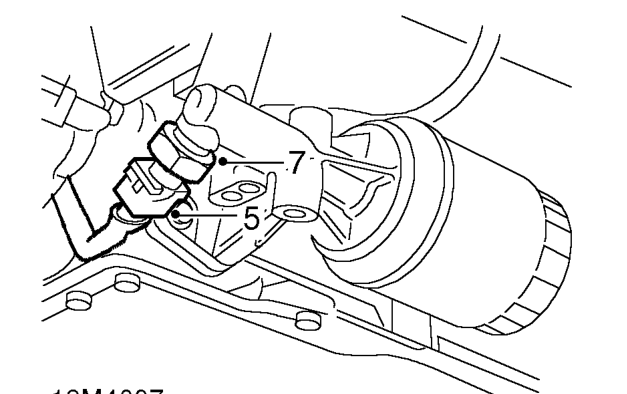

  1. Disconnect multiplug from oil pressure switch.
  2. Position drain tin below switch to catch spillage.
  3. Remove oil pressure switch.

Refit

  1. Clean oil pressure switch threads.
  2. Fit oil pressure switch and tighten to 12 Nm.
  3. Connect multiplug to oil pressure switch.
  4. Position splash shield, fit and tighten bolts to 10 Nm.
  5. Position steering wheel straight ahead.
  6. Remove stand(s) and lower vehicle.
  7. Top-up engine oil. See MAINTENANCE.
